Question: Consider the beam shown in ( Figure 1 ) . EI is constant. Assume that EI is in kN m 2 . Use the principle

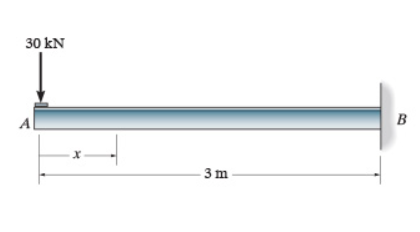

Consider the beam shown in (Figure 1). EI is constant. Assume that EI is in kNm2. Use the principle of virtual work to solve this problem. (A) Determine the slope at point A measured counterclockwise from the positive x axis. Express your answer in terms of E and I. Express the coefficients using three significant figures so the slope is in radians. (B) Determine the displacement at point A measured downward. Express your answer in terms of E and I. Express the coefficients using three significant figures so the displacement is in meters. Enter a positive value if the displacement is downward and a negative value if the displacement is upward.
