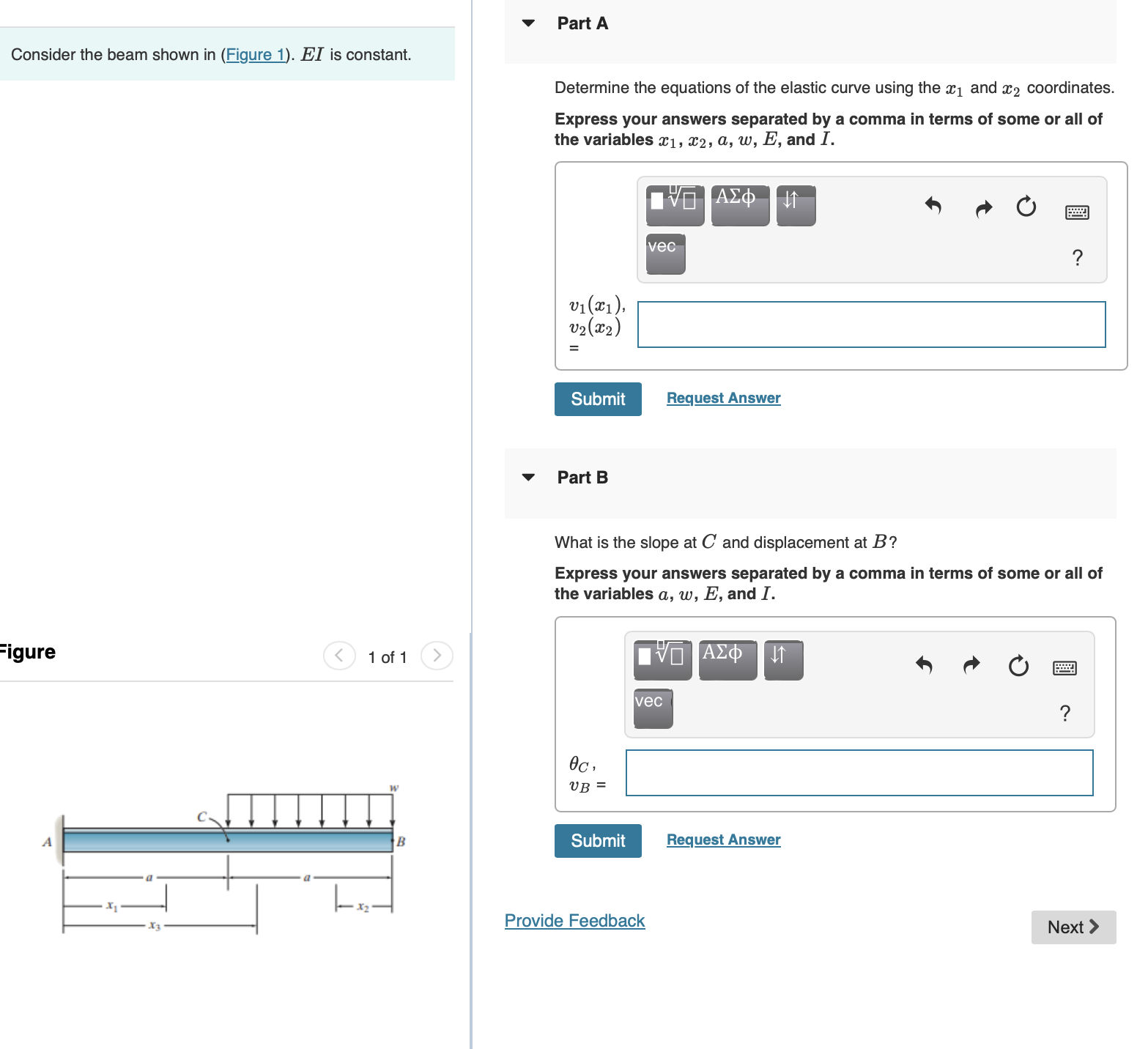

Question: Consider the beam shown in ( Figure 1 ) . E I is constant. - igure Part A Determine the equations of the elastic curve

Consider the beam shown in (Figure 1).EI is constant.
-igure
Part A
Determine the equations of the elastic curve using the x1 and x2 coordinates.
Express your answers separated by a comma in terms of some or all of
the variables x1,x2,a,w,E, and I.
Request Answer
Part B
What is the slope at C and displacement at B?
Express your answers separated by a comma in terms of some or all of
the variables a,w,E, and I.
Provide Feedback
Consider the beam shown in ( Figure 1 ) . E I is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
