Question: Consider the following table, showing the activities and duration estimates of a project: Activity Initial Final Node Duration Node Estimate/ days A 1 2 2

Consider the following table, showing the

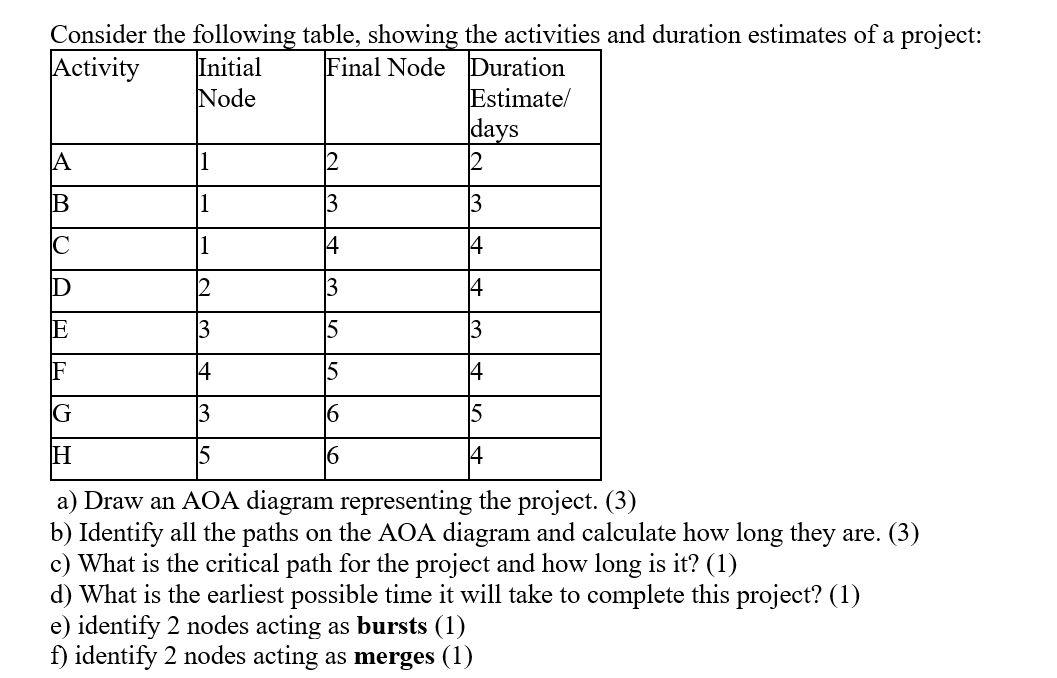

Consider the following table, showing the activities and duration estimates of a project: Activity Initial Final Node Duration Node Estimate/ days A 1 2 2 IB 1 13 13 C 11 14 14 D 2 3 14 E 3 5 3 IF 14 15 4 G 3 16 15 H 5 6 4 a) Draw an AOA diagram representing the project. (3) b) Identify all the paths on the AOA diagram and calculate how long they are. (3) c) What is the critical path for the project and how long is it? (1) d) What is the earliest possible time it will take to complete this project? (1) e) identify 2 nodes acting as bursts (1) f) identify 2 nodes acting as merges (1)
