Question: Consider the LC circuit shown below. Switch S is initially open, and the capaci- tor has a charge Qm on its plates. At t =

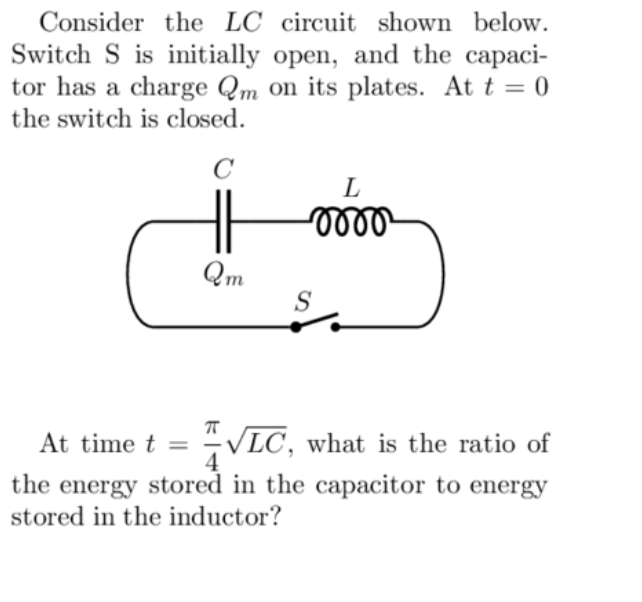

Consider the LC circuit shown below. Switch S is initially open, and the capaci- tor has a charge Qm on its plates. At t = 0 the switch is closed. L Qm S At time t = - VLC, what is the ratio of the energy stored in the capacitor to energy stored in the inductor

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Physics Questions!

Consider the LC circuit shown below. Switch S is initially open, and the capaci- tor has a charge Qm on its plates. At t = 0 the switch is closed. C L 0800 Qm S At time t = "VLC, what is the ratio of...

Consider the LC circuit shown below. Switch S is initially open, and the capaci- tor has a charge Qm on its plates. At t = 0 the switch is closed. C L -0000 Qm S At time t = LC, what is the ratio of...

Consider the LC circuit shown below. Switch S is initially open, and the capacitor has a charge Q m on its plates. At t = 0 the switch is closed. At time t = 4 L C 2 , what is the ratio of the energy...

14. 10 pts possible Consider the LC circuit shown below. 1. 1 = 2m cos ? VLC VLC Switch S is initially open, and the capaci- tor has a charge Qm on its plates. At t = 0 the switch is closed. 0 2. 1 =...

Qm sin Consider the LC circuit shown below. 1. 1 = VLC VLC Switch S is initially open, and the capaci- tor has a charge Qm on its plates. At t = 0 Qm 2. I = COS the switch is closed. VLC VLC C L 0080...

13d In the gure shown. what is the electric power dissipated in the 2 resistor in the circuit? 59 1Q 49 II- 12'!" a. 5.33 "W b. 3.013.? c. 6.6T\"? (1.3.5613? e. 1.33 "W 14d Initially. for the circuit...

Please solve all with steps :(((( 1. In the following network of capacitors, C1 = 2 uF, C2 = 1 uF, C3 = 2 uF, and C4 = 1 uF. A 12-V battery is connected to the network as shown. The switch 8 is...

=8OV.G=20,U,F.R=U.7MQ. Initially, tor the circuit shown, the switch 8 is open and the capacitor is uncharged. The switch 3 is closed at time t 2 0. In the gure, when the time t is equal to 20.0 s,...

5 . Consider an L - C circuit connected in parallel with a battery ( emf \ ( \ mathcal { E } ) \ ) and a resistor \ ( R \ ) . The switch is initially open. In the diagram, \ ( q \ ) , \ ( i _ { \...

3. Consider the LRC circuit shown below. Use = = 10V, R1 = 20, R2 is a variable resistor initially set to 50, C1 = 3F, C2 = 5F, and L = 10H. At t = 0 the switch S1 is closed. WW MAAAN R R, L S, (a)...
