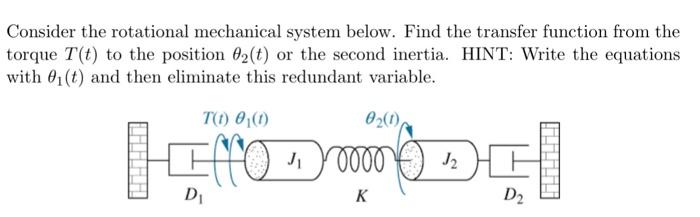

Question: Consider the rotational mechanical system below. Find the transfer function from the torque T(t) to the position 2(t) or the second inertia. HINT: Write the

Consider the rotational mechanical system below. Find the transfer function from the torque T(t) to the position 2(t) or the second inertia. HINT: Write the equations with 1(t) and then eliminate this redundant variable

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Chemical Engineering Questions!

Problem 1 Consider the following system described with torsional mass - spring - damper system as shown in Figure 1 . Torque 1 ( t ) is applied to the body to deliver torque 2 ( t ) at the other end...

In the figure below, the force F is applied on the system as shown. Assume the displacement of mass m 1 is x 1 and mass m 2 is x 2 as shown. Find the differential equations of the system. Also, find...

Shown below is a schematic of a ship's propeller, drive train, engine and flywheel. Flywheel having a very large inertia can be assumed to be fixed. The input torque Tm is applied by the engine. The...

Consider the DC motor-driven wheeled mobile robot shown in Figure 6.82a, where \(m\) is the mass of the wheeled mobile robot, \(r\) is the radius of the driving wheel, and \(\tau\) is the torque...

solve and provide the matlab code Problem 3.5 (Primitive Block Diagrams) We say that a Block Diagram is Primitive if the following are all satisfied: 1. All blocks are primitive 2. There are no...

GANTRY SYSTEM It is desired to control the position of a spring driven cart, while carrying a pendulum. This system, known as gantry system, is used in many industrial applications. We are assuming...

A flywheel with inertia J is driven by an input torque and is connected to a lead screw that advances a mass m . The flexibility of the lead screw is modeled using a torsional spring. The lead screw...

MODELING OF AN ELECTRO - MECHANICAL SYSTEMS There are systems which are hybrids of electrical and mechanical variables hence the name electro - mechanical. Application for these systems with...

4.1. Inverted Pendulum Modeling Consider an inverted single link arm of length i carrying a mass m, acceleration due to gravity g and input torque T applied at the base as shown in Figure l Figure 1:...

A linear analytical model of the automobile engine for the idle speed control system is shown in Fig. 2.245.The input of the system is the throule position that controls the rate of airflow into the...
