Question: Consider the setup in Figure 3 in which three different soil layers, each 2 0 0 m m in length, are located inside a cylindrical

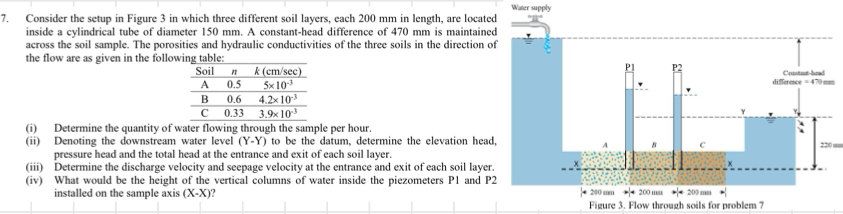

Consider the setup in Figure 3 in which three different soil layers, each 200mm in length, are located
inside a cylindrical tube of diameter 150mm. A constant-head difference of 470mm is maintained
across the soil sample. The porosities and hydraulic conductivities of the three soils in the direction of
the flow are as given in the following table:
(i) Determine the quantity of water flowing through the sample per hour.
(ii) Denoting the downstream water level (Y-Y) to be the datum, determine the elevation head,
pressure head and the total head at the entrance and exit of each soil layer.
(iii) Determine the discharge velocity and seepage velocity at the entrance and exit of each soil layer.
(iv) What would be the height of the vertical columns of water inside the piezometers P1 and P2
installed on the sample axis (X-X)?
** note the k values in the table
