Construct the circuits Shown, its does not matter what values you use, just need some correct answers in the blanks

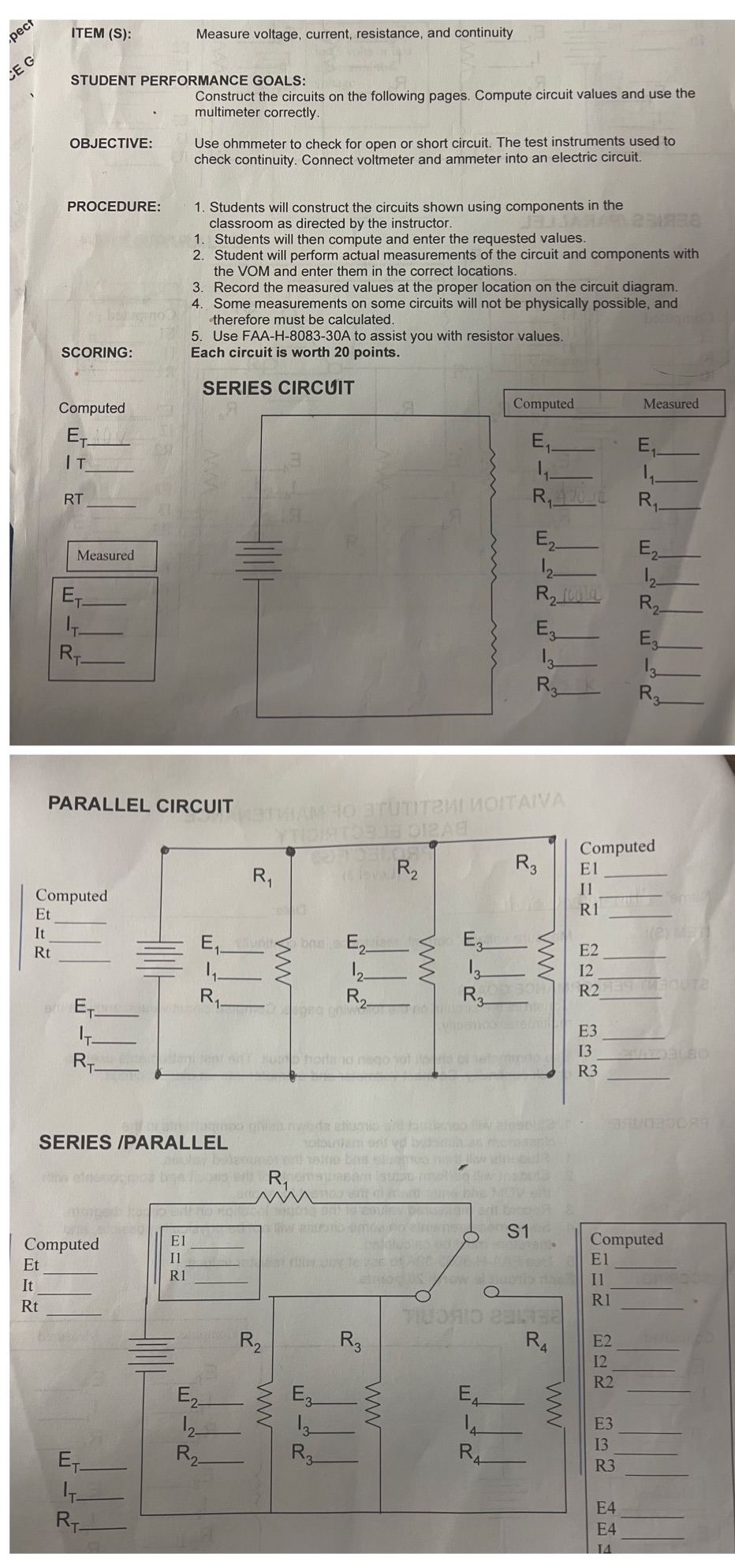

pect ITEM (S): Measure voltage, current, resistance, and continuity JE G STUDENT PERFORMANCE GOALS: Construct the circuits on the following pages. Compute circuit values and use the multimeter correctly. OBJECTIVE: Use ohmmeter to check for open or short circuit. The test instruments used to check continuity. Connect voltmeter and ammeter into an electric circuit. PROCEDURE: 1. Students will construct the circuits shown using components in the classroom as directed by the instructor. 1 . Students will then compute and enter the requested values. 2. Student will perform actual measurements of the circuit and components with the VOM and enter them in the correct locations. 3. Record the measured values at the proper location on the circuit diagram. 4. Some measurements on some circuits will not be physically possible, and therefore must be calculated. 5. Use FAA-H-8083-30A to assist you with resistor values. SCORING: Each circuit is worth 20 points. SERIES CIRCUIT Computed Computed Measured ET IT RT E2- Measured E2- 12- 12- ET R 2 E 3 RT_ 13 PARALLEL CIRCUIT METMIAMIHO STUTITENINOITAIVA Computed R 2 R3 E1 Computed R1 Et It M Rt E2 1 2- 13- 12 R. R 2 R 2 R2 ET_ E3 13 RT and nego bot R3 390020089 SERIES /PARALLEL R. S1 Computed E1 Computed Et I1 RI I1 It RI Rt R3 RA E2 12 R2 E2- EA MM 1 2- 13 E3 R 13 ET R3 IT E4 RT E4 14
