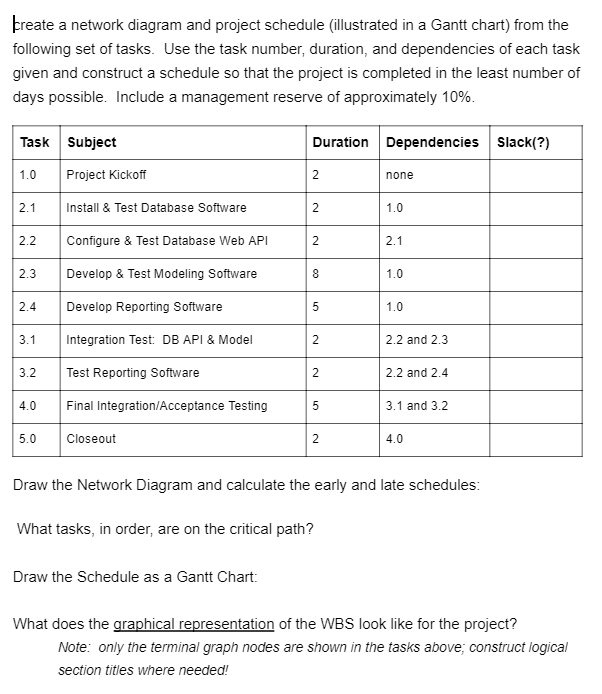

Create a network diagram and project schedule (illustrated in a Gantt chart) from the following set of tasks. Use the task number, duration, and dependencies of each task given and construct a schedule so that the project is completed in the least number of days possible. Include a management reserve of approximately 10%. Task Subject Duration Dependencies Slack(?) 1.0 Project Kickoff none 2.1 Install & Test Database Software 1.0 2.2 Configure & Test Database Web API 2.3 Develop & Test Modeling Software 2.4 Develop Reporting Software 3.1 Integration Test: DB API & Model 2.2 and 2.3 3.2 Test Reporting Software 2.2 and 2.4 4.0 Final Integration/Acceptance Testing 5 3.1 and 3.2 5.0 Closeout 4.0 Draw the Network Diagram and calculate the early and late schedules: What tasks, in order, are on the critical path? Draw the Schedule as a Gantt Chart: What does the graphical representation of the WBS look like for the project? Note: only the terminal graph nodes are shown in the tasks above, construct logical section titles where needed
