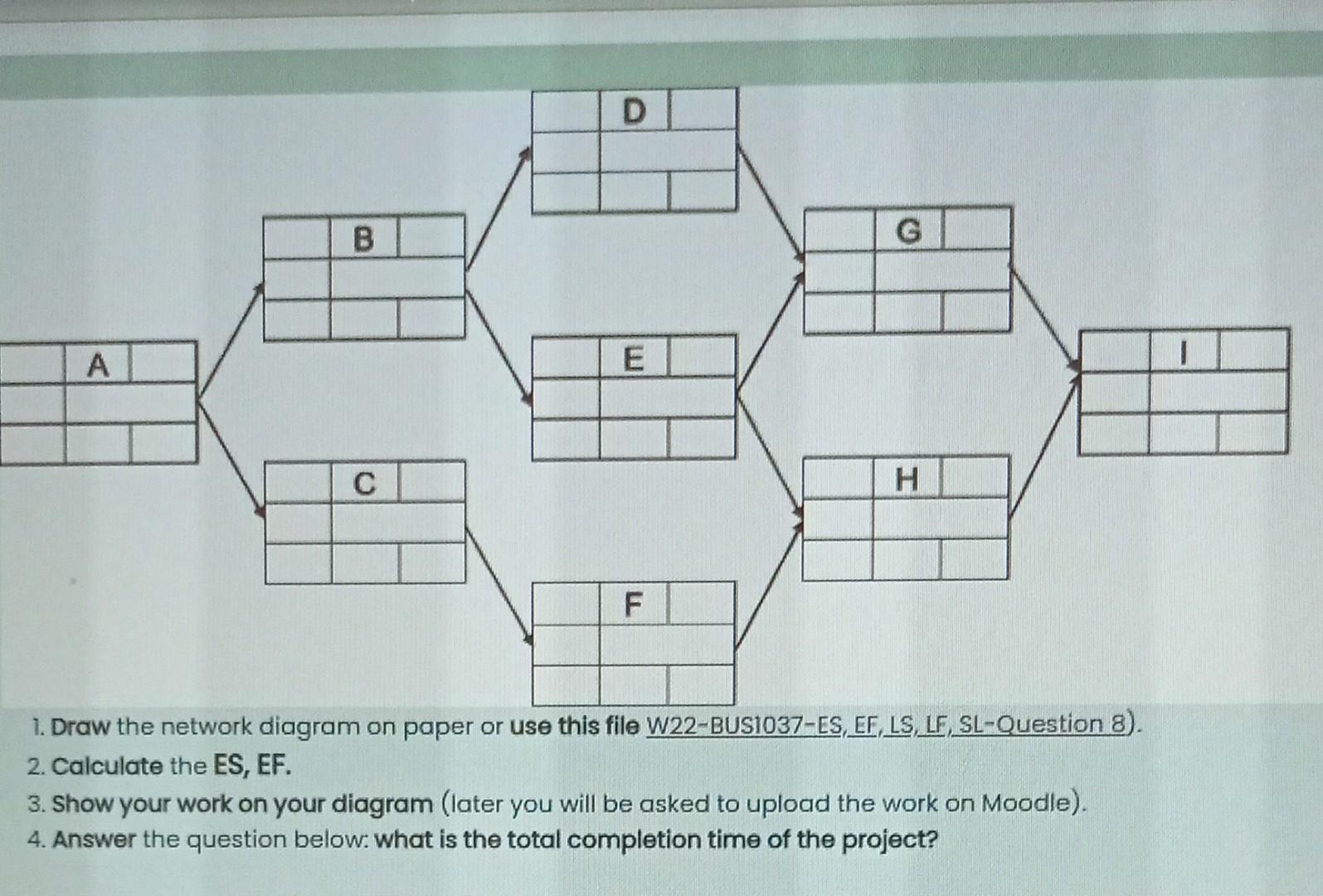

Question: D B G A E C H F 1. Draw the network diagram on paper or use this file W22-BUS1037-ES, EF, LS, LF, SL-Question a).

D B G A E C H F 1. Draw the network diagram on

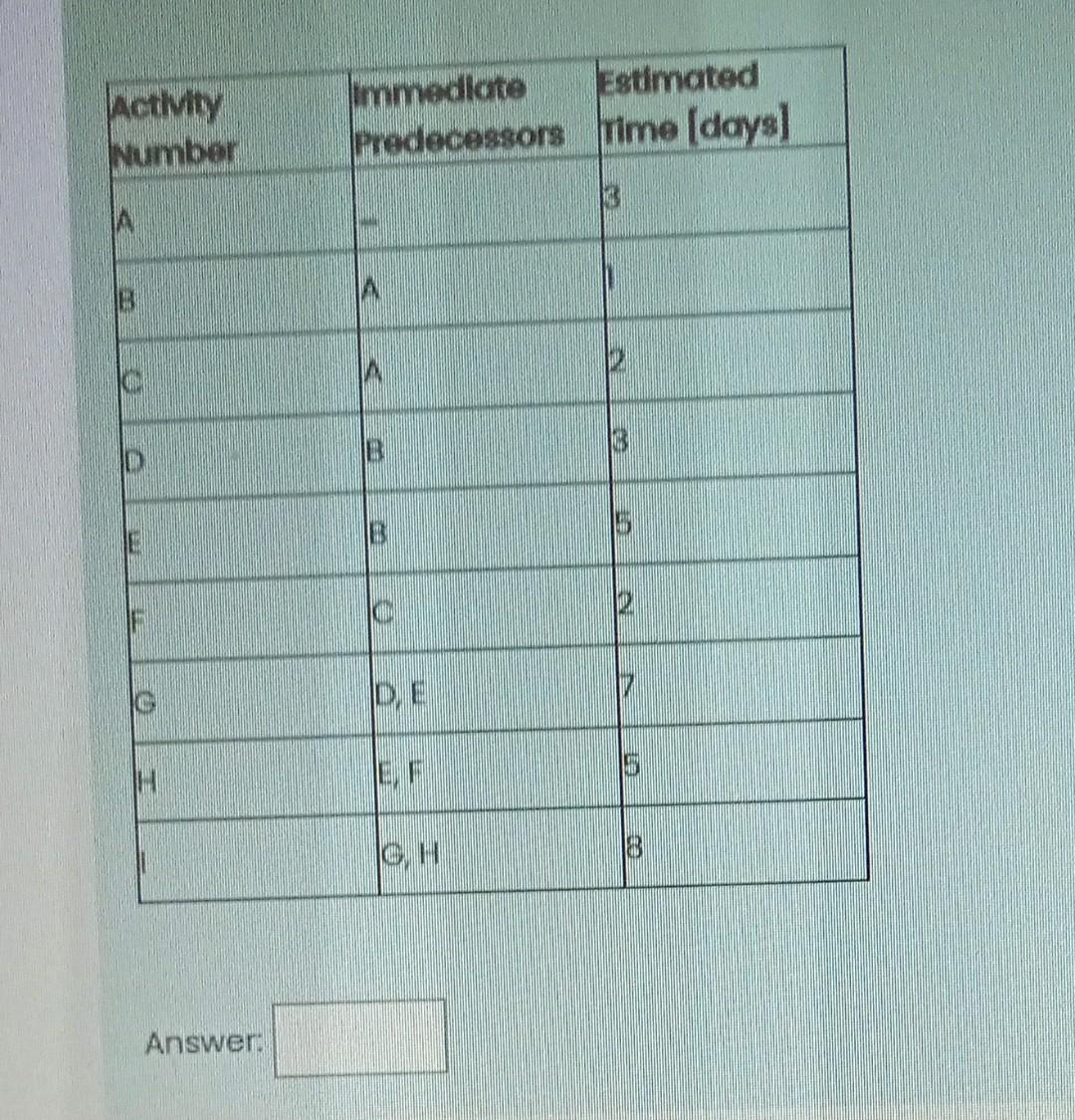

D B G A E C H F 1. Draw the network diagram on paper or use this file W22-BUS1037-ES, EF, LS, LF, SL-Question a). 2. Calculate the ES, EF. 3. Show your work on your diagram (later you will be asked to upload the work on Moodle). 4. Answer the question below. what is the total completion time of the project? Activity Number immadlate Estimated Predecessors ime (daya] B 15 D C JEF 16
