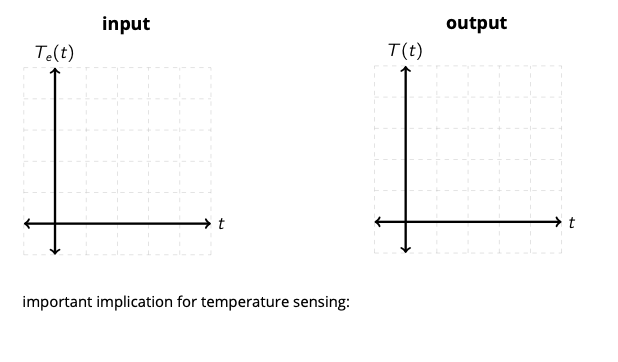

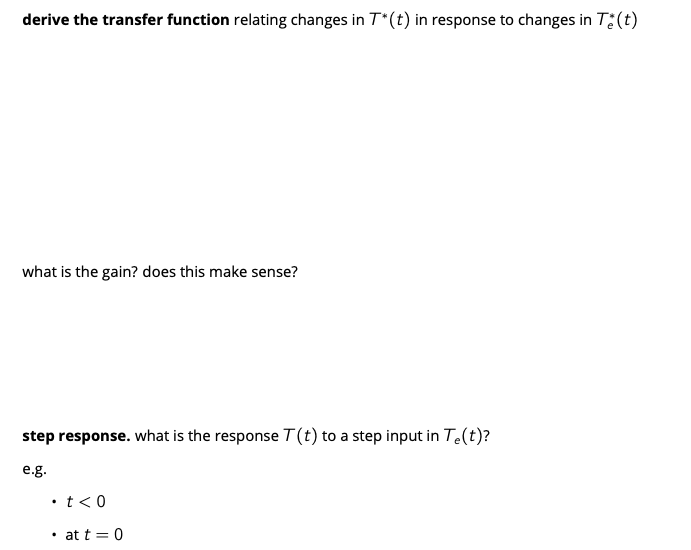

Question: derive the transfer function relating changes in T*(t) in response to changes in T:(t) what is the gain? does this make sense? step response. what

derive the transfer function relating changes in T*(t) in response to changes in T:(t) what is the gain? does this make sense? step response. what is the response T(t) to a step input in Te(t)?

derive the transfer function relating changes in T*(t) in response to changes in T:(t) what is the gain? does this make sense? step response. what is the response T(t) to a step input in Te(t)? e.g. . t

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Chemical Engineering Questions!

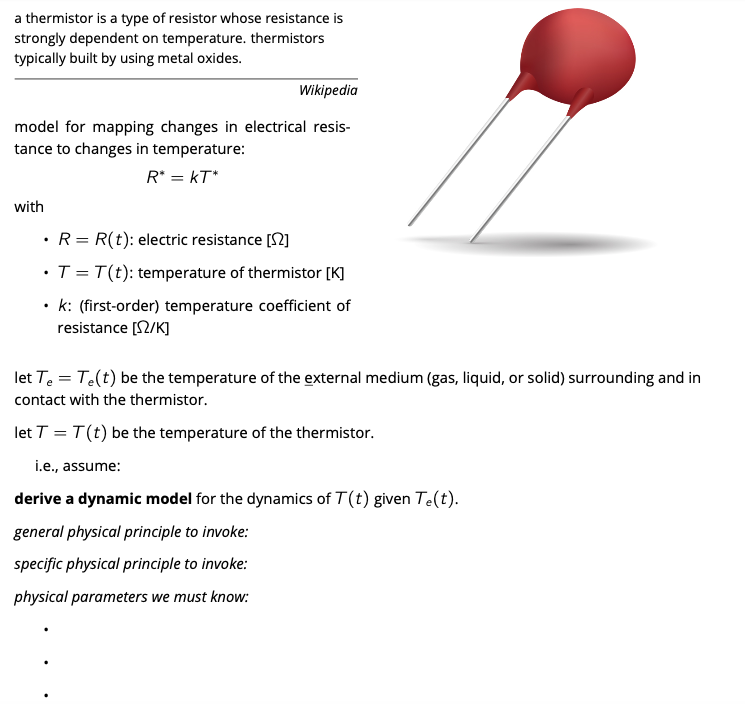

a thermistor is a type of resistor whose resistance is strongly dependent on temperature. thermistors typically built by using metal oxides. Wikipedia model for mapping changes in electrical resis-...

CHE 361 thermistor dynamics a thermistor is a type of resistor whose resistance is strongly dependent on temperature. thermistors typically built by using metal oxides. Wikipedia model for mapping...

A heated process is used to heat a semiconductor wafer operating with first - order dynamics. The first prder transfer function relating changes in temperature, T to changes in the heater input power...

In the system of Figure 4 - 3 5 , x ( t ) is the input displacement and theta ( t ) is the output angular dis - placement. Assume that the masses involved are negligibly small and that all motions...

Consider the blending system shown in Figure. A feedback control system is used to reduce the effect of disturbances in feed composition, x 1 , n the controlled variable, product composition, x....

I need someone help me understand and solve this problem. Table A is in photo no. 2 - Choose your parameters from Table A at the end of the assignment. - You should provide valid assumptions for all...

1.) Ulaby and Maharbiz problem 9.56 (for both second and third edition) Use Matlab to solve this problem. Spectral plots are the magnitude response plots of the Bode plot. In addition to what the...

Tall let 0 = (t) [C] be the temperature of a graphics processing unit (GPU), a component of a computer. the computations performed by the GPU generate heat at a rate q=g(t) [J/s]. to prevent the...

1H 0000 1H 112 0000 M Vilt) 1H 1F 1F vo(t) Figure 2: Electrical Network 2 i) ii) Derive the transfer function of the system in frequency domain. With unit step as its input, analyze the output...

use the sample code to answer 3&4 During this lab, observe the effect of system parameters (e.g., time constant, gain, damping ratio) on the step- response (i.e., a time step change in the input to...
