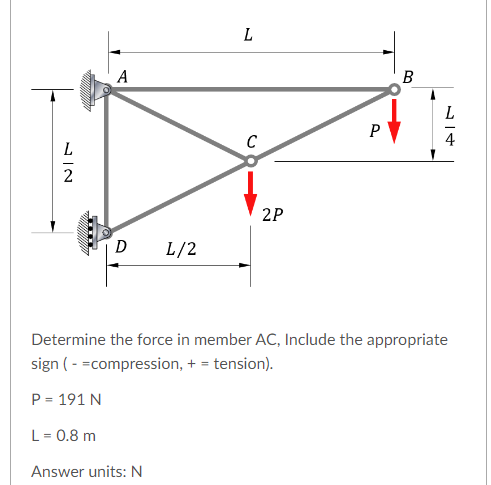

Question: Determine the force in member AC , Include the appropriate compression, + = tension ) . P = 1 9 1 N L = 0

Determine the force in member AC, Include the appropriate
compression, += tension).
P=191N
L=0.8m
Answer units: N
Determine the force in member AC , Include the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

2/7 2455 D L/2 L 2P P B L Determine the force in member AC, Include the appropriate sign (--compression,+-tension). P = 169 N L-1m Answer units: N 10 pts
