Question: The truss is suspended by two pin joints. Each segment is 3 m wide and 4 m high. The applied force is F = 3

The truss is suspended by two pin joints. Each segment is

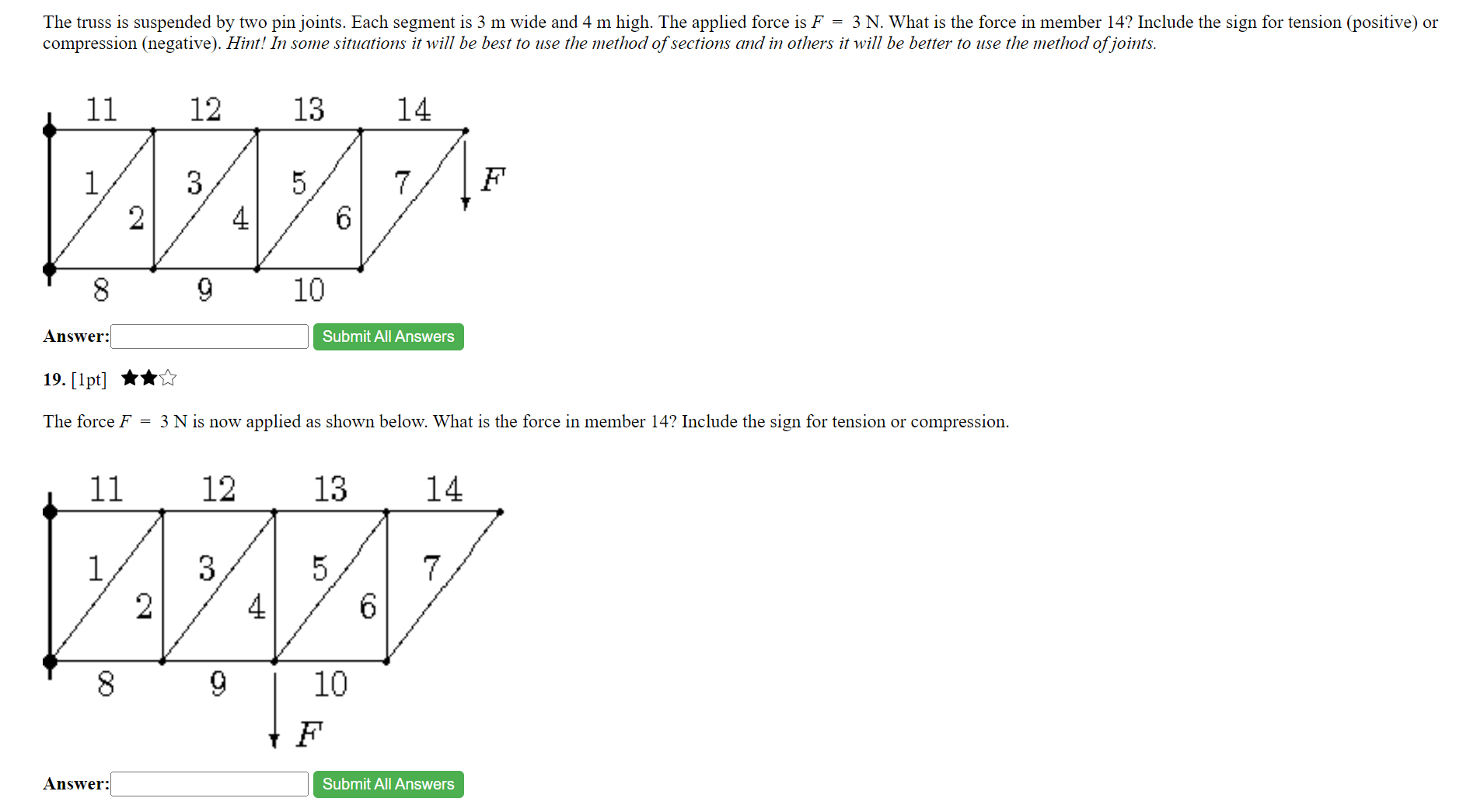

The truss is suspended by two pin joints. Each segment is 3 m wide and 4 m high. The applied force is F = 3 N. What is the force in member 14? Include the sign for tension (positive) or compression (negative). Hint! In some situations it will be best to use the method of sections and in others it will be better to use the method of joints. 11 12 13 14 3 7 F 2 4 6 8 10 Answer: Submit All Answers 19. [1pt ] * * The force F = 3 N is now applied as shown below. What is the force in member 14? Include the sign for tension or compression. 11 12 13 14 CT 00 7 2 4 6 8 10 Answer: Submit All Answers

Step by Step Solution
