Question: Determine the maximum loading P if the tensile and compressive 180 mm stresses in the members AB and CD cannot exceed 100 MPa and 150

Determine the maximum loading P if the tensile and compressive 180 mm stresses in the members AB and CD cannot exceed 100 MPa and 150 MPa, respectively. The cross-sectional area of members AB and CD is 228 mm. (kN) 260 mm P 10 A OU OB OP 240 mm

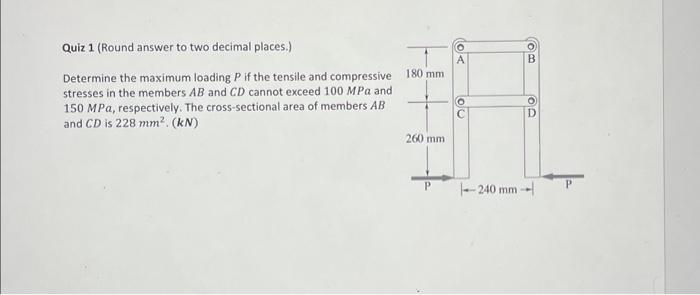

Quiz 1 (Round answer to two decimal places.) Determine the maximum loading P if the tensile and compressive stresses in the members AB and CD cannot exceed 100MPa and 150MPa, respectively. The cross-sectional area of members AB and CD is 228mm2.(kN)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
