draw the flow chart and show all calculations please.

- Draw a flow chart once with 0 duration & once with 1 duration.

- Find the critical part for both durations.

- Apply the crashing method on duration zero (choose whatever part)

What more data is needed to create a flow chart and find the critical path? Duration and Predecessor are given.

This is all the data given in the question.

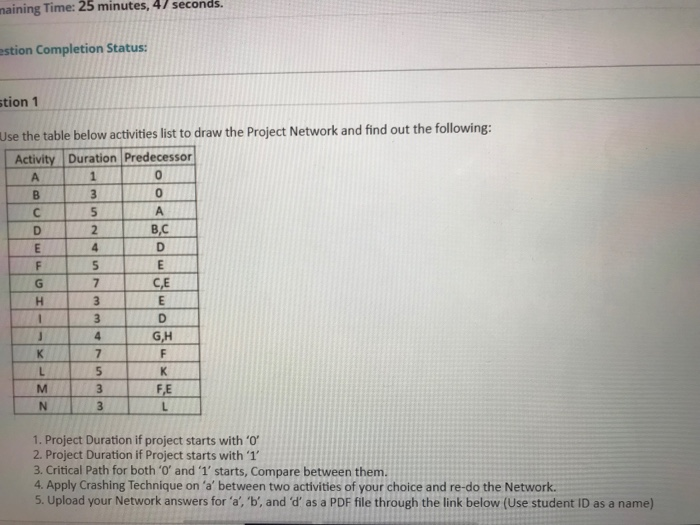

naining Time: 25 minutes, 47 seconds. estion Completion Status: stion 1 Use the table below activities list to draw the Project Network and find out the following: Activity Duration Predecessor . TG 1. Project Duration if project starts with 'o' 2. Project Duration if Project starts with '1' 3. Critical Path for both 'O' and '1' starts, Compare between them. 4. Apply Crashing Technique on 'a' between two activities of your choice and re-do the Network. 5. Upload your Network answers for 'a', 'b', and 'd' as a PDF file through the link below (Use student ID as a name)
