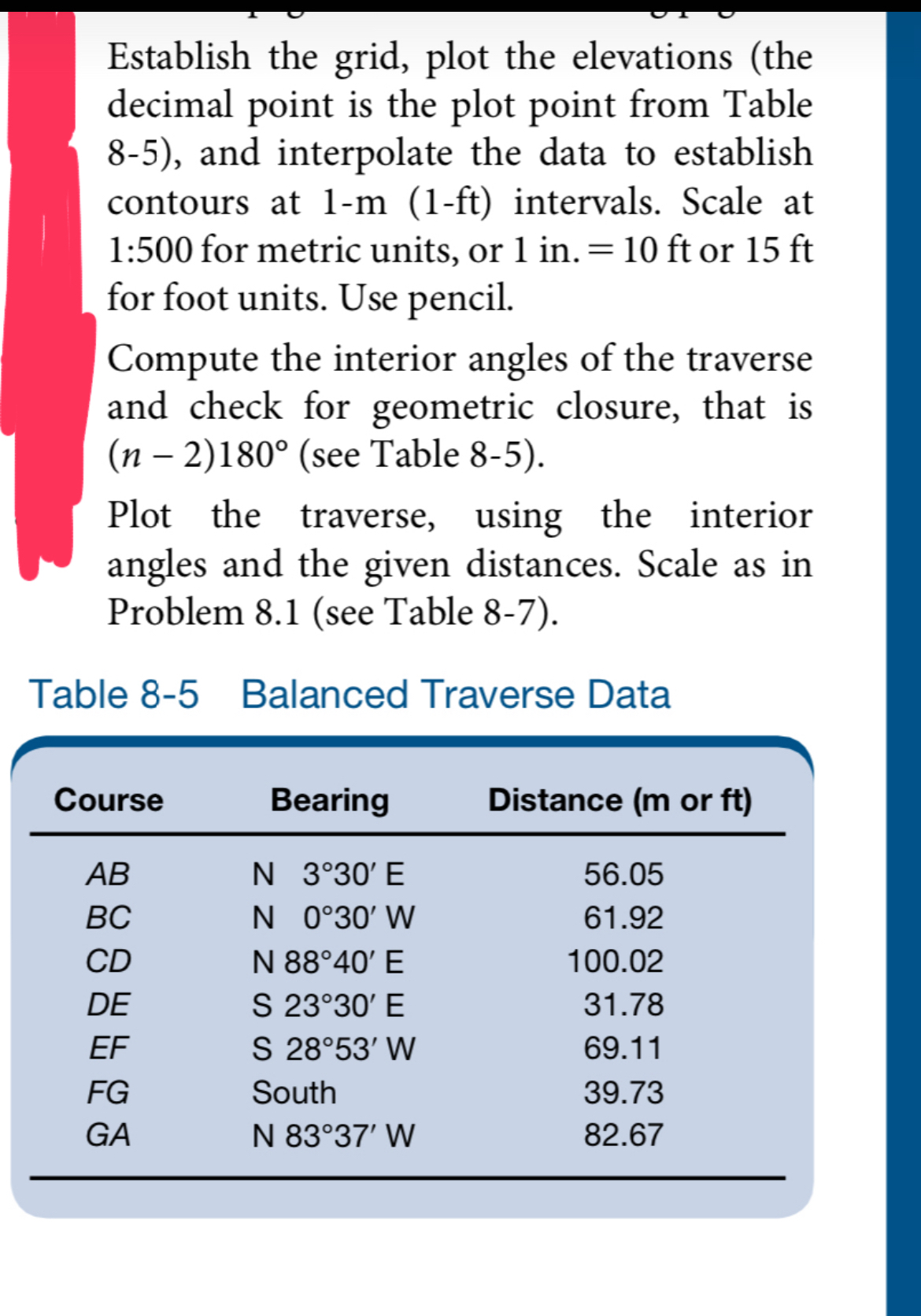

Establish the grid, plot the elevations $($the decimal point is the plot point from Table $8-5,$ and interpolate the data to establish contours at $1-m(1-ft)$ intervals. Scale at $1$:$500$ for metric units, or $1in.=10ft$ or $15ft$ for foot units. Use pencil.

Compute the interior angles of the traverse and check for geometric closure, that is $(n-2)180($see Table $8-5).$

Plot the traverse, using the interior angles and the given distances. Scale as in Problem $8\mathrm{.}1($see Table $8-7).$

Table $8-5$ Balanced Traverse Data

$\backslash$table$[[$Course$,$Bearing,Distance $($m or ft$)],[AB,N3{30}^{\text{'}}E,56\mathrm{.}05],[BC,N0{30}^{\text{'}}W,61\mathrm{.}92],[CD,N88{40}^{\text{'}}E,100\mathrm{.}02],[DE,S23{30}^{\text{'}}E,31\mathrm{.}78],[EF,S28{53}^{\text{'}}W,69\mathrm{.}11],[FG,$South,$39\mathrm{.}73],[GA,N83{37}^{\text{'}}W,82\mathrm{.}67]]$
