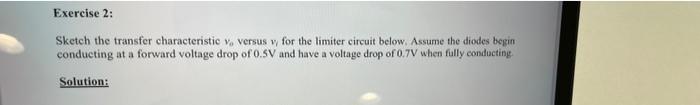

Question: Exercise 2: Sketch the transfer characteristic v, versus y for the limiter circuit below. Assume the diodes begin conducting at a forward voltage drop of

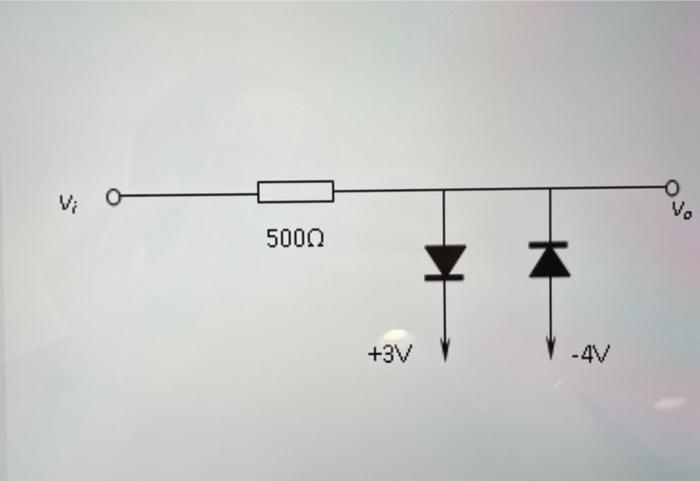

Exercise 2: Sketch the transfer characteristic v, versus y for the limiter circuit below. Assume the diodes begin conducting at a forward voltage drop of 0.5V and have a voltage drop of 0.7V when fully conducting Solution: o Vi Vo 5000 7 +3V -4V
