Question: (figure 1) Figure 22 Q 12 12.0 v 15 Q lofl 11 121) v 12 Q 11 Q 6.0 v 180 13 part A

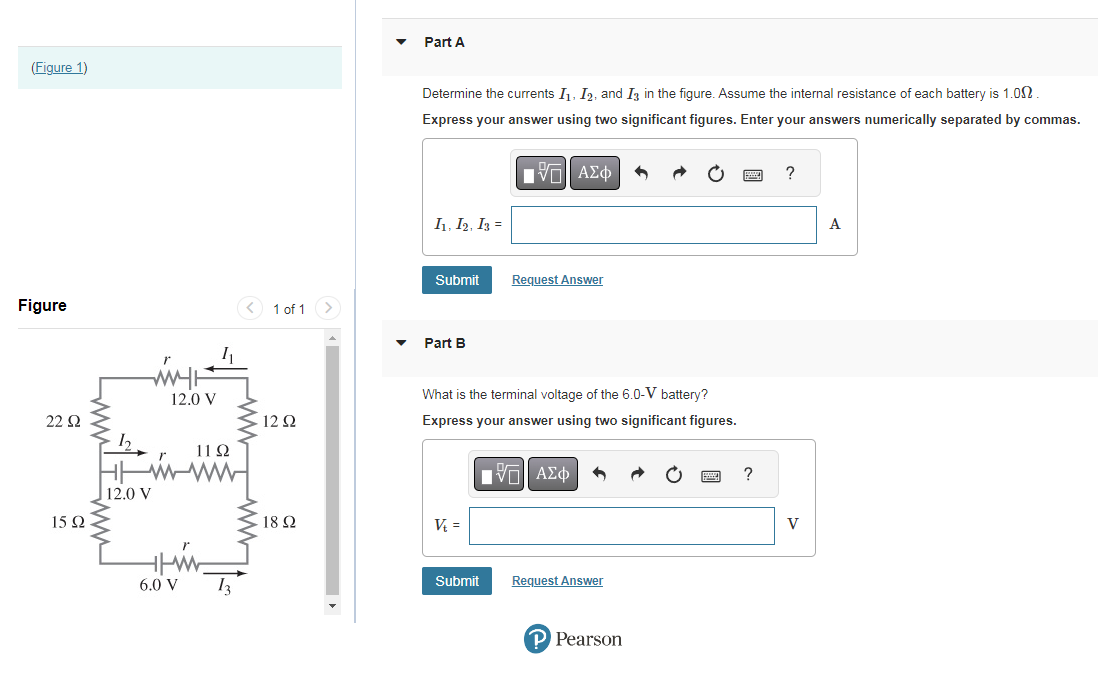

(figure 1) Figure 22 Q 12 12.0 v 15 Q lofl 11 121) v 12 Q 11 Q 6.0 v 180 13 part A Determine the currents 11, 12, and 13 in the figure. Assume the internal resistance of each battery is 1 00 Express your answer using two significant figures. Enter your answers numerically separated by commas. 11, 12, 13 Submit part B What is the terminal voltage of the &O-V battery? Express your answer using two significant figures. Submit Pearson

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
