Question: FIGURE P 4 - 1 4 4 . 1 4 . For the transfer function in Fig. P 4 - 1 4 , the response

FIGURE P4-14

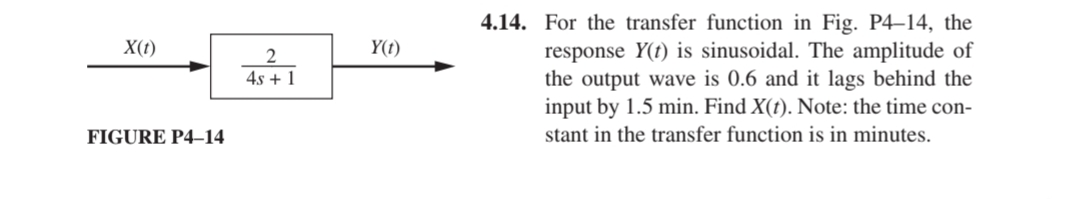

4.14. For the transfer function in Fig. P4-14, the response Y(t) is sinusoidal. The amplitude of the output wave is 0.6 and it lags behind the input by 1.5min. Find x(t). Note: the time constant in the transfer function is in minutes.
FIGURE P4-14 4.14. For the transfer function in Fig. P4-14, the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
