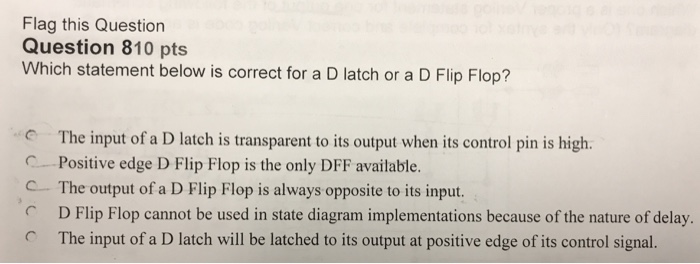

Question: Flag this Question Question 810 pts Which statement below is correct for a D latch or a D Flip Flop? The input of a D

Flag this Question Question 810 pts Which statement below is correct for a D latch or a D Flip Flop? The input of a D latch is transparent to its output when its control pin is high Positive edge D Flip Flop is the only DFF available. The output of a D Flip Flop is always opposite to its input. DFlip Flop cannot be used in state diagram implementations because of the nature of delay. The input of a D latch will be latched to its output at positive edge of its control signal. C
