Question: For Nos, 3 6 - 3 8 : The 6 - meter cantilever beam shown in the figure is loaded with a uniform load of

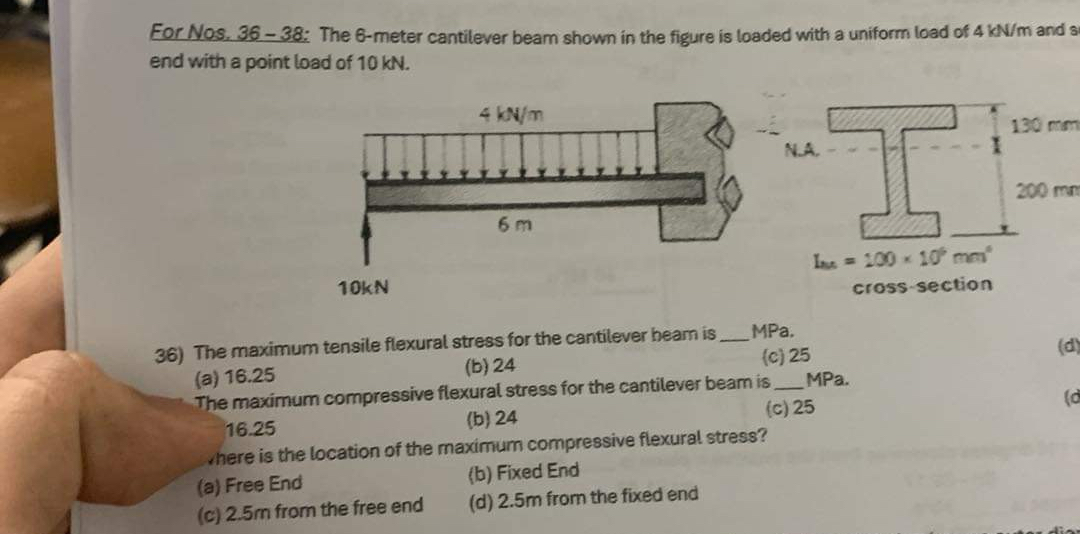

For Nos, 36-38: The 6-meter cantilever beam shown in the figure is loaded with a uniform load of 4kNm and s end with a point load of 10kN.
The maximum tensile flexural stress for the cantilever beam is q, MPa.
(a)16.25
(b)24
(c)25
The maximum compressive flexural stress for the cantilever beam is q, MPa.
16.25
(b)24
(c)25
where is the location of the maximum compressive flexural stress?
(a) Free End
(b) Fixed End
(C)2.5m from the free end
(d)2.5m from the fixed end
For Nos, 3 6 - 3 8 : The 6 - meter cantilever
