Question: For the Ag-Pm binary phase diagram provided below: 1. Draw the cooling curves and predict the expected microstructure for the compositions indicated by the red

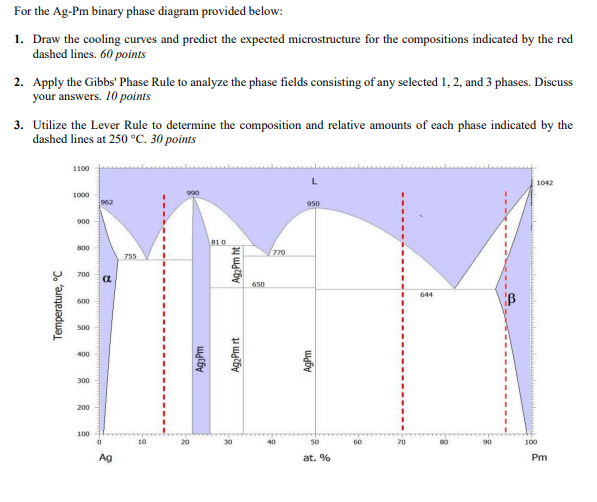

For the Ag-Pm binary phase diagram provided below: 1. Draw the cooling curves and predict the expected microstructure for the compositions indicated by the red dashed lines. 60 points 2. Apply the Gibbs' Phase Rule to analyze the phase fields consisting of any selected 1,2 , and 3 phases. Discuss your answers. 10 points 3. Utilize the Lever Rule to determine the composition and relative amounts of each phase indicated by the dashed lines at 250C. 30 points For the Ag-Pm binary phase diagram provided below: 1. Draw the cooling curves and predict the expected microstructure for the compositions indicated by the red dashed lines. 60 points 2. Apply the Gibbs' Phase Rule to analyze the phase fields consisting of any selected 1,2 , and 3 phases. Discuss your answers. 10 points 3. Utilize the Lever Rule to determine the composition and relative amounts of each phase indicated by the dashed lines at 250C. 30 points
