For the beam shown in Figure #$2$ below, complete the following steps:

$(5$ points$).$ Identify and label all forces and moments acting on the beam. Draw the complete free$-$body diagram.

$(10$ points$).$ Apply the appropriate equations of equilibrium to solve for the internal shear forces. Then, draw the shear force diagram for the beam.

$(15$ points$).$ Using the equations of equilibrium, calculate the internal moments at key points, $A,B,$ and $C,$ along the beam. Draw the corresponding bending moment diagram and determine the maximum bending moment.

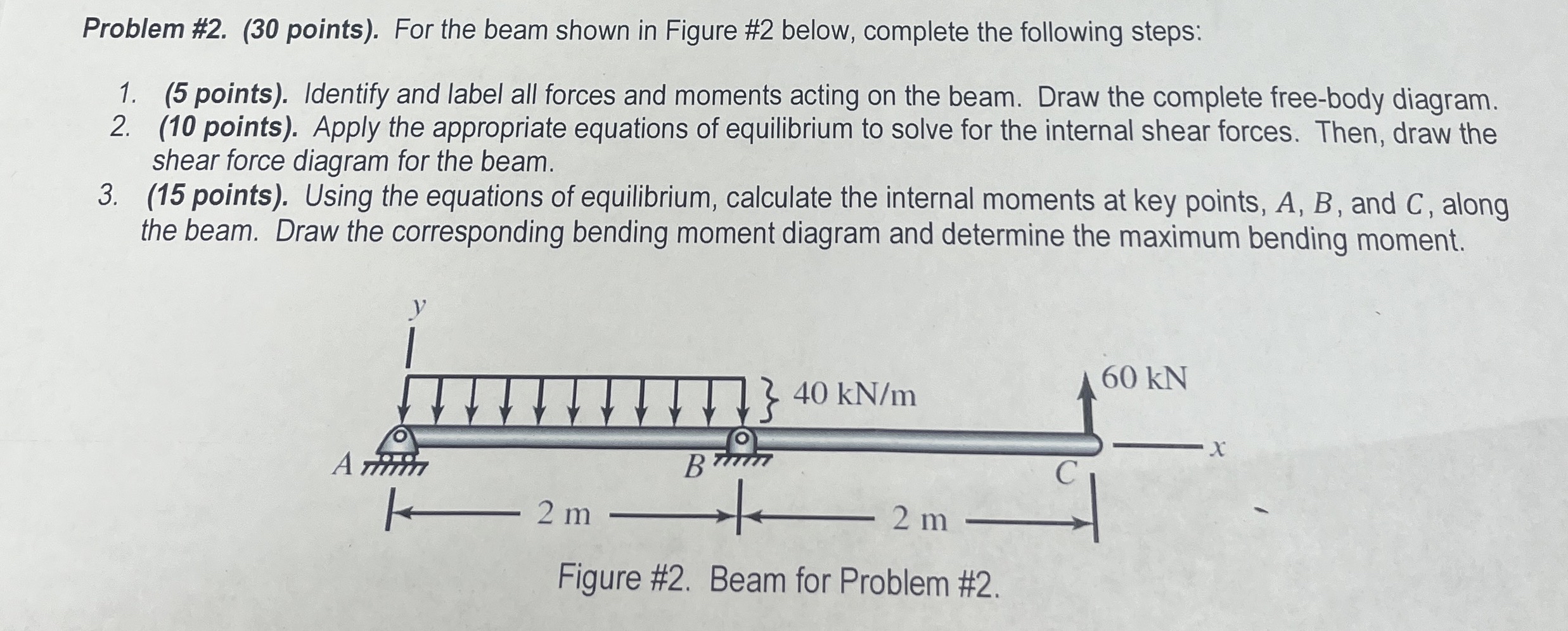

Figure #$2.$ Beam for Problem #$2.$
