Question: For the following circuit, find the labeled current and node voltages ( I D , V 1 , V 2 ) . Ignore the body

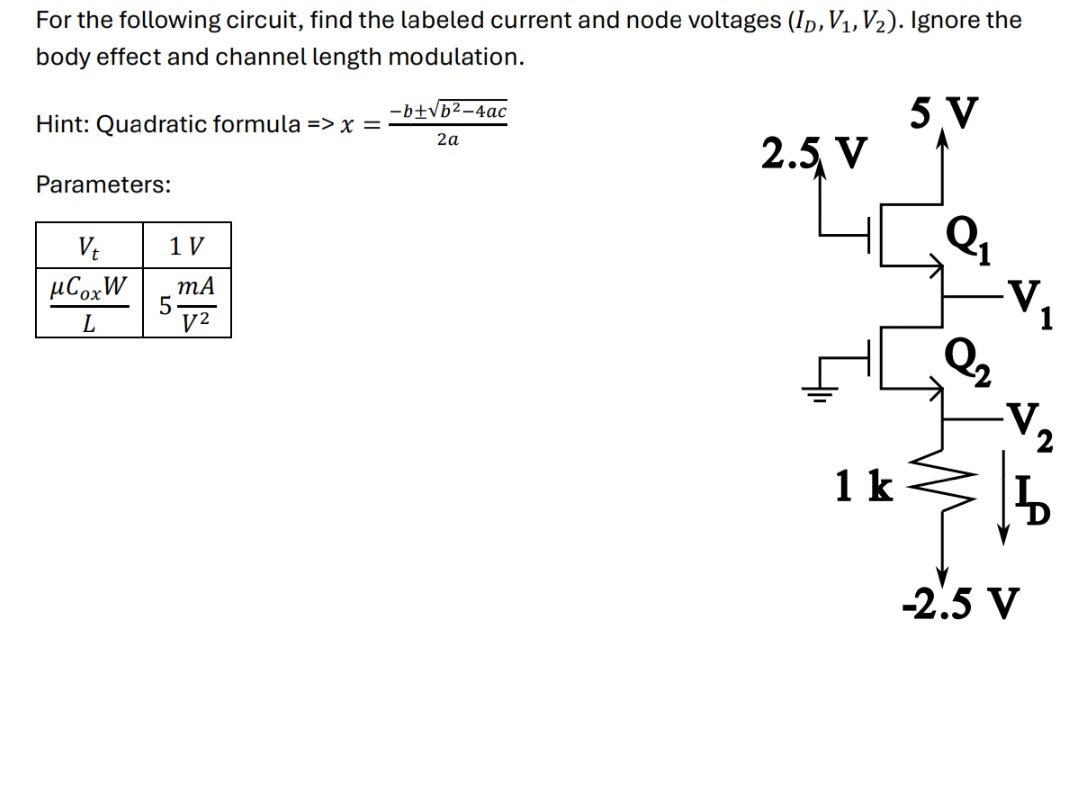

For the following circuit, find the labeled current and node voltages (ID,V1,V2). Ignore the body effect and channel length modulation.
Hint: Quadratic formula =>x=-b+-b2-4ac22a
Parameters:
\table[[Vt,1 V],[CoxWL,5(mA)V2
For the following circuit, find the labeled

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
