Question: Given the Activity Table with their respective predecessors and duration (in weeks), prepare the following: Gantt Chart PERT Diagram Enumerated Paths List all paths (sequence

Given the Activity Table with their respective predecessors and duration (in weeks), prepare the following:

Gantt Chart
PERT Diagram
Enumerated Paths
- List all paths (sequence of nodes) through the network and their lengths (total cost)
Critical Path
Shortest Time to Complete the Project

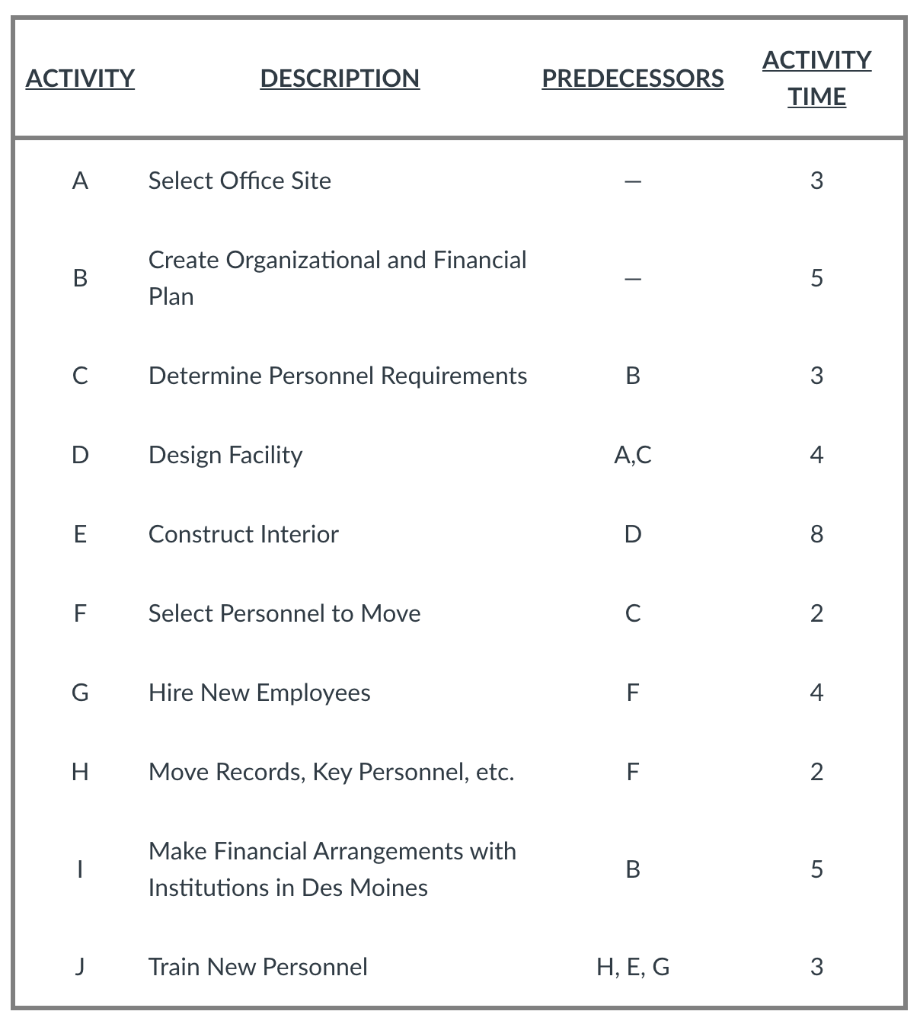

ACTIVITY DESCRIPTION PREDECESSORS ACTIVITY TIME A Select Office Site 3 B Create Organizational and Financial Plan 5 C Determine Personnel Requirements B 3 D Design Facility A,C 4 E Construct Interior D 8 F Select Personnel to Move 2. G Hire New Employees F 4 H Move Records, Key Personnel, etc. F. 2 Make Financial Arrangements with Institutions in Des Moines B 5 J Train New Personnel H, E, G 3

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related General Management Questions!

Given the Activity Table with their respective predecessors and duration (in weeks), prepare the following: Gantt Chart PERT Diagram Enumerated Paths List all paths (sequence of nodes) through the...
