Question: Given the data in the table below, draw both the arrow network and the node network, and Determine the critical path/s. Calculate and indicate the

Given the data in the table below, draw both the arrow network and the node network, and Determine the critical path/s. Calculate and indicate the Early Start, Early Finish schedule, Late Start, Late Finish schedule, Free Float and Total Float of each activity.

Given the data in the table below, draw both the

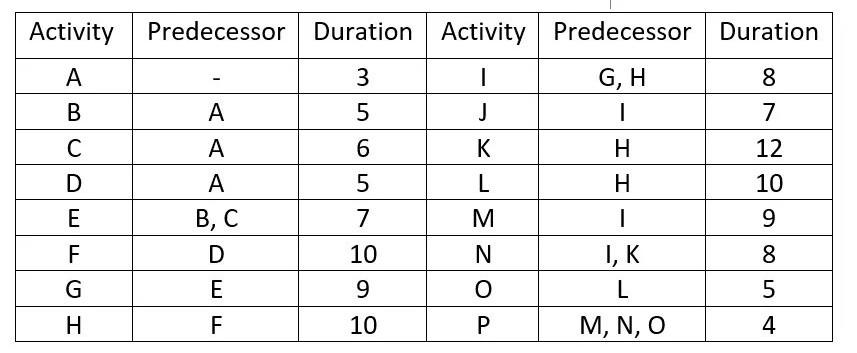

Activity Duration A 8 B | C Predecessor Duration Activity Predecessor 3 1 G H A 5 J I A 6 K H A 5 L H B, C 7 M I D 10 N I, K E 9 O L F 10 P M, N, O 7 12 10 D E 9 8 | I | G F G . 5 | | 0 TM 4

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related General Management Questions!

2. Given the following project's activities table, complete the following: Sketch the network diagram Draw the network diagram with activity boxes Determine early start and finish times (forward...

tual code de a Activity Predecessor Normal time A 2 B 3 C B A 5 G. F H 15 HH 2 D N M, J 1 - Construct Work Breakdown Structure (WBS) refer to course lectures - Construct Linear Responsibility Chart...

Activity Predecessor Normal Time A 2 B 3 C D 1 2 1 E A C F 5 F 3 H I G.D G 1 7 2 3 I D 7 L LIJ MiJ 1 4 3 20 1 - Construct Work Breakdown Structure (WBS) -refer to course lectures - Construct Linear...

Question 3: Given the following set of activities for a project, construct the network diagram and determine the earliest start and finish times, latest start and finish times, and slacks for each...

tual code de a Activity Predecessor Normal time A 2 B 3 C B A 5 G. F H 15 HH 2 D N M, J 1 - Calculate early start (ES), early finish (EF), late start (LS) and late finish (LF) for each activity -...

it is project management please asap 7 Question 1 - 30 points 8 1. Draw the network diagram (PDM) 9 2. Identify all the paths through the network 10 3. Select the critical path and explain why 11 4....

As a project manager, you have started to plan a project that aims to remodel an appliance. You created the activities with their durations and predecessors as shown in Table 1. Table 1 - Project:...

All duration estimated times are in days. Activity Three - point duration estimates: Optimistic Most likely Pessimistic A 2 4 1 2 1 8 B 1 2 1 7 2 2 C 1 6 1 3 1 6 D 7 1 4 2 1 E 8 1 6 1 8 F 1 3 1 1 1 5...

Question 1: (11marks) For the project detailed in the table below: Draw the Activity on Node (AoN) network diagram using labels for activity node showing early start, late start, early finish, late...

An IT project manager of ABC Company has developed an activity list for the purpose of tracking employees' daily activities on the project. The project's schedule is considered to be of high risk due...
