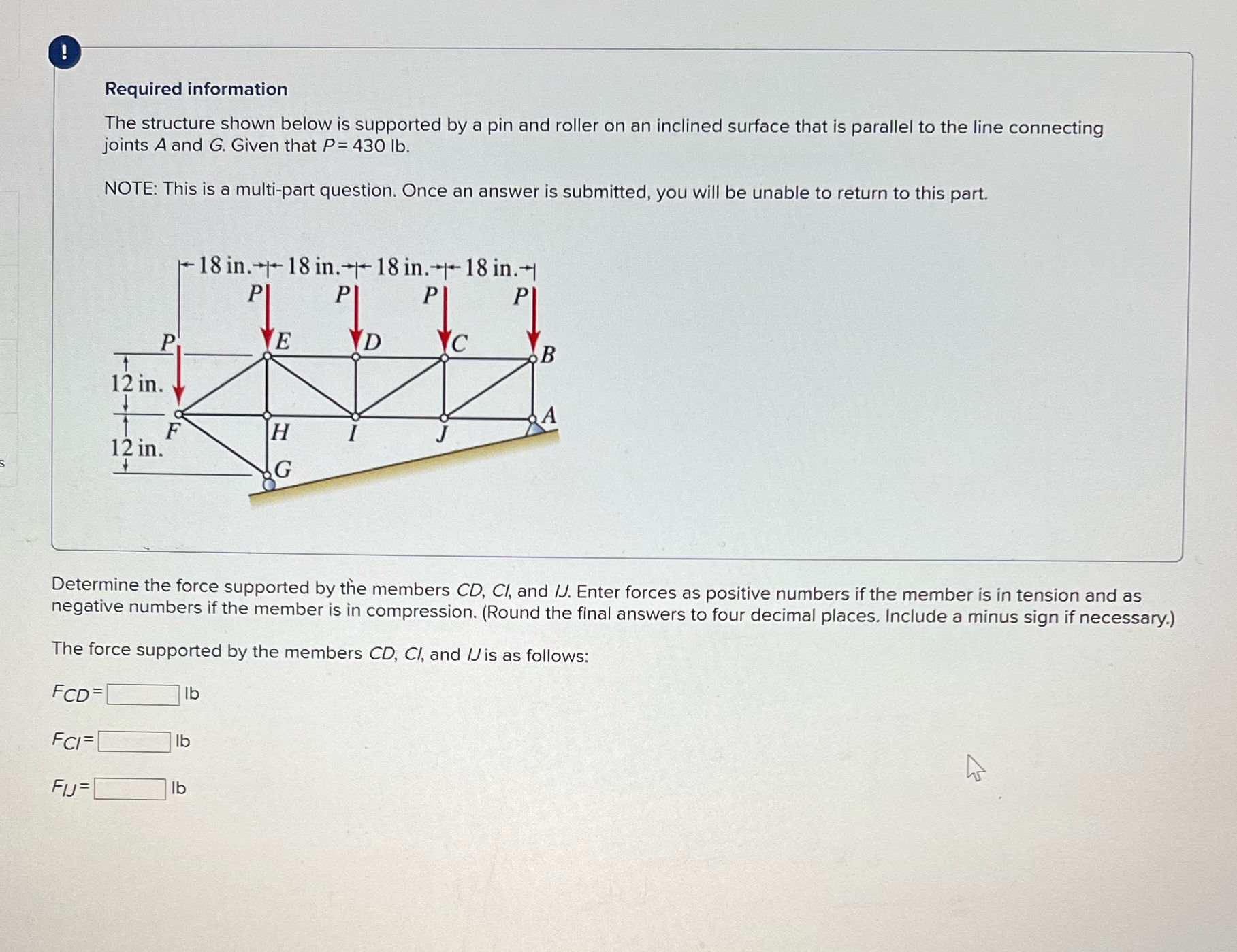

Required information The structure shown below is supported by a pin and roller on an inclined surface that is parallel to the line connecting joints A and G. Given that P= 430 lb. NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. - 18 in.-|+ 18 in. | 18 in. |18 in.- P P P VE YD YC B 12 in. F H 12 in. G Determine the force supported by the members CD, CI, and /J. Enter forces as positive numbers if the member is in tension and as negative numbers if the member is in compression. (Round the final answers to four decimal places. Include a minus sign if necessary.) The force supported by the members CD, Cl, and /J is as follows: FCD= Ib FCI= Ib Ib
