Question: how do you draw the network activity diagram for this? Activity Relationships Duration Activity A 5 7 B 3 D 4 Logic Start Start B

how do you draw the network activity diagram for this? how do you draw the network activity diagram for

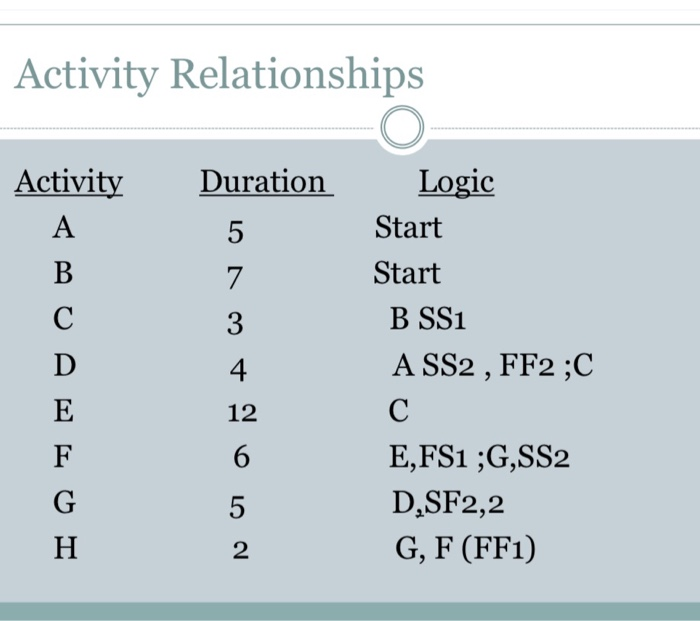

Activity Relationships Duration Activity A 5 7 B 3 D 4 Logic Start Start B SS1 A SS2 , FF2 ;C E,FS1 ;G,SS2 D.SF2,2 G, F (FF1) E 12 F 6 G 5 H 2

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
