Question: i need a solution asap 7. Write the Control sequence for execution of the instruction MUL R4, R9, 12(R11) and microinstructions for this instruction (Table),

i need a solution asap 7. Write the Control sequence for execution i need a solution asap

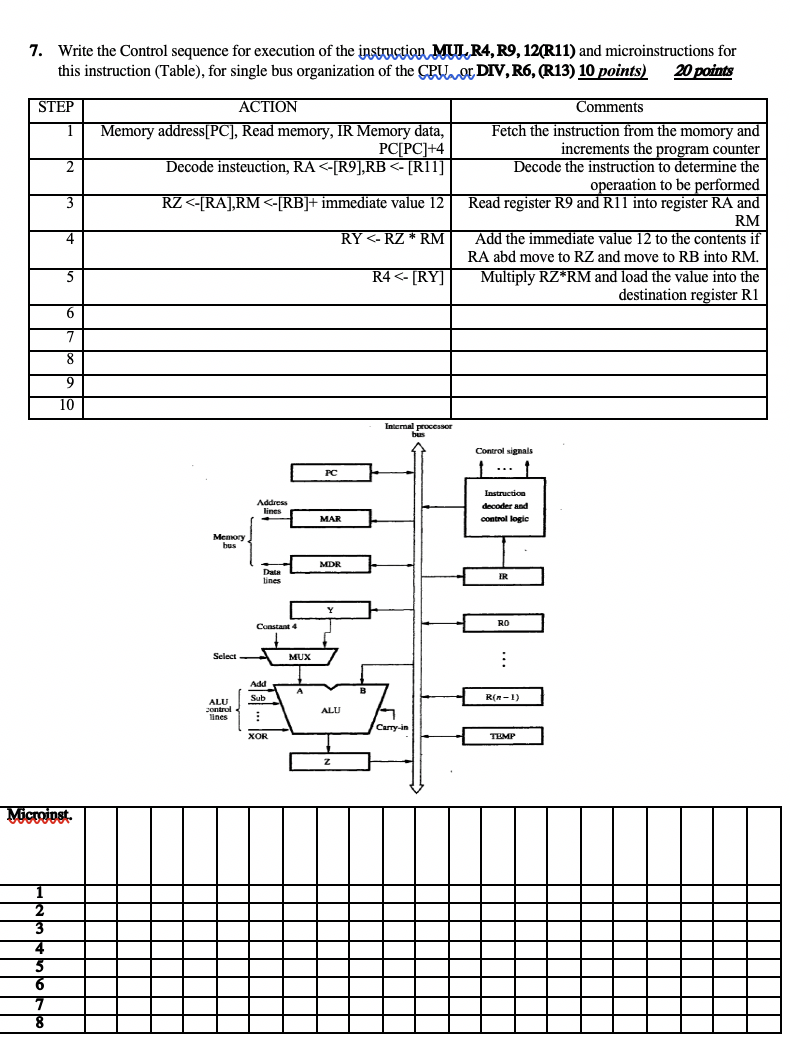

7. Write the Control sequence for execution of the instruction MUL R4, R9, 12(R11) and microinstructions for this instruction (Table), for single bus organization of the CPla Or DIV, R6, (R13) 10 points) 20 points STEP ACTION Comments 1 Memory address[PC], Read memory, IR Memory data, Fetch the instruction from the momory and PC[PC]+4 increments the program counter 2 Decode insteuction, RA

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

Write the Control sequence for execution of the instruction MUL R4, R9, 12(R11) and microinstructions for this instruction (Table), for single bus organization of the CPU, or DIV, R6, (R13) ) all the...

7. Write the Control sequence for execution of the instruction Add R9, R7,5(R5) and microinstructions for this instruction (Table), for single bus organization of the CPU, || 20 points STEP ACTION...

Write the Control sequence for execution of the instruction SUB R1, 5(R2), R4 and microinstructions for this instruction (Table), for single bus organization of the CPU, or SUB R15, (R22) 10 points)...

10. Write the Control sequence for execution of the instruction Add (R7), R2,7(R5) and microinstructions for this instruction (Table), for single bus organization of the CPU, or SUB R8, (R3)( 10...

10. Write the Control sequence for execution of the instruction SUB (RS), R11,7(R2) and microinstructions for this instruction (Table), for single bus organization of the CPU, or Add R5, (R10) STEP...
