Question: i need this in Project Management Using the table below, draw the network diagram and write ES, EF, LS, LF, and SL for all the

i need this in Project Management

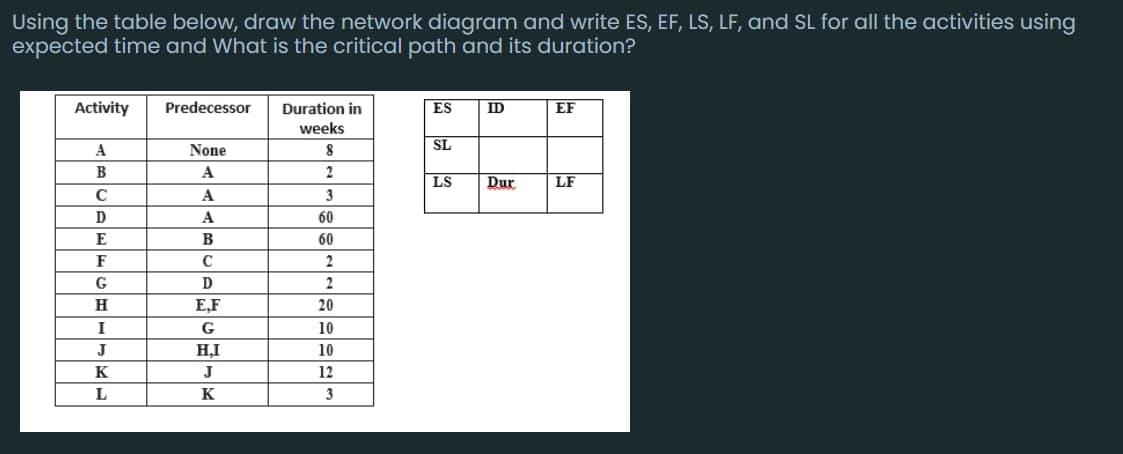

Using the table below, draw the network diagram and write ES, EF, LS, LF, and SL for all the activities using expected time and What is the critical path and its duration? Activity Predecessor ES ID EF SL A B LS Dur LF D None A A A B Duration in weeks 8 2 3 60 60 2 2 20 10 10 12 3 E F G I J L D E.F G HI J K

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
