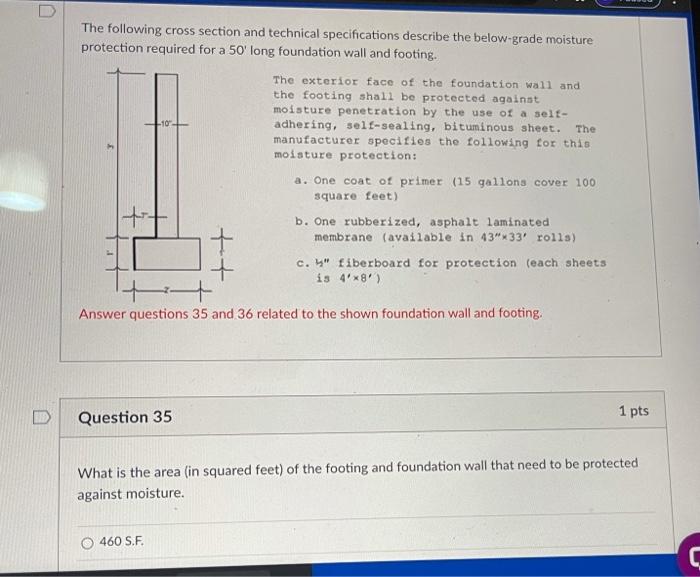

The following cross section and technical specifications describe the below-grade moisture protection required for a 50' long foundation wall and footing. The exterior face of the foundation wall and the footing shall be protected against moisture penetration by the use of a self- adhering, self-sealing, bituminous sheet. The manufacturer specifies the following for this moisture protection: a. One coat of primer (15 gallons cover 100 square feet) b. One rubberized, asphalt laminated membrane (available in 43"* 33' rolls) c. fiberboard for protection (each sheets + + is 4'*8') Answer questions 35 and 36 related to the shown foundation wall and footing. 1 pts Question 35 What is the area (in squared feet) of the footing and foundation wall that need to be protected against moisture. 460 S.F. C D D Question 36 4 pts If the amount of below-grade moisture protection required for the above-shown foundation is 1,000. S.F, complete the table below to estimate the total material cost. The primer costs $2.50/gallon: membrane costs $50/roll; and fiberboards are $7.50/sheet. Hints: Disregard waste and overlapping of the self-adhesive membrane Use round numbers for ordered quantities Add a 6% sales tax Cost Item Unit Quantity Unit Cost ($/unit) Total Cost Primer gallon $2.50 Membrane roll $50,0 Fiberboards sheet $7.50 Subtotal ($) Sales Tax ($) Grand Total ($) D Question 42 5 pts Determine the number of 4'*8' drywall sheets needed for the floor plan below. The walls are 8 feet high. The exterior walls need drywall on the interior side only, while the interior walls need drywall on both sides. Add 5 percent waste and ignore openings. -19- 191 Edit View Insert Format Tools Table 12pt Paragraph B IUA Tv
