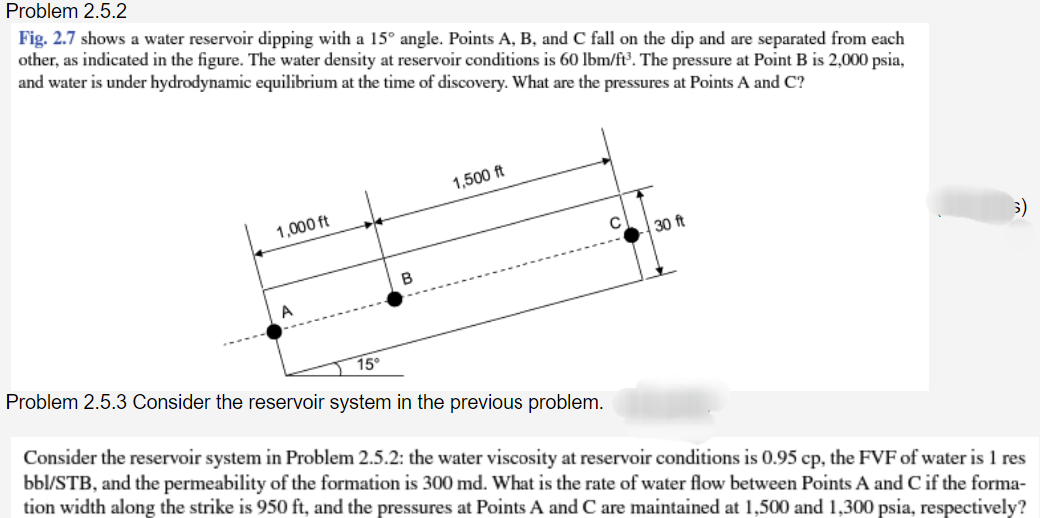

Problem 2.5.2 Fig. 2.7 shows a water reservoir dipping with a 15 angle. Points A, B, and C fall on the dip and are separated from each other, as indicated in the figure. The water density at reservoir conditions is 60 Ibm/ft'. The pressure at Point B is 2,000 psia, and water is under hydrodynamic equilibrium at the time of discovery. What are the pressures at Points A and C? 1,500 ft 3) 1,000 ft C 30 ft B A 15 Problem 2.5.3 Consider the reservoir system in the previous problem. Consider the reservoir system in Problem 2.5.2: the water viscosity at reservoir conditions is 0.95 cp, the FVF of water is 1 res bbl/STB, and the permeability of the formation is 300 md. What is the rate of water flow between Points A and C if the forma- tion width along the strike is 950 ft, and the pressures at Points A and C are maintained at 1,500 and 1,300 psia, respectively
