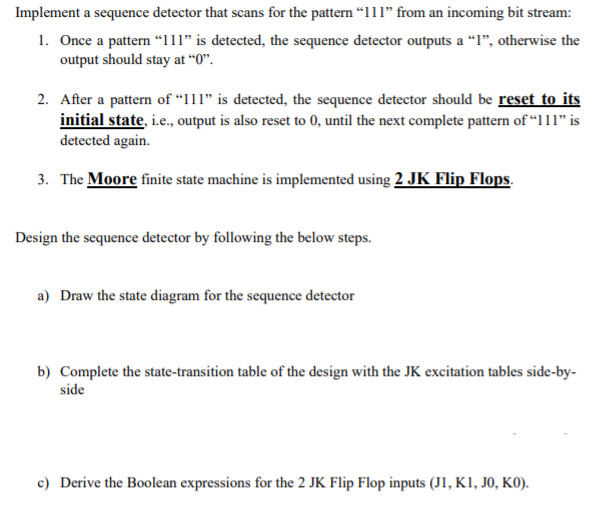

Implement a sequence detector that scans for the pattern 111 from an incoming bit stream: 1. Once a pattern 111 is detected, the sequence detector outputs a l, otherwise the output should stay at "0". 2. After a pattern of 111 is detected, the sequence detector should be reset to its initial state, i.e., output is also reset to 0, until the next complete pattern of 111 is detected again. 3. The Moore finite state machine is implemented using 2 JK Flip Flops. Design the sequence detector by following the below steps. a) Draw the state diagram for the sequence detector b) Complete the state-transition table of the design with the JK excitation tables side-by- side c) Derive the Boolean expressions for the 2 JK Flip Flop inputs (J1, K1, JO, KO)
