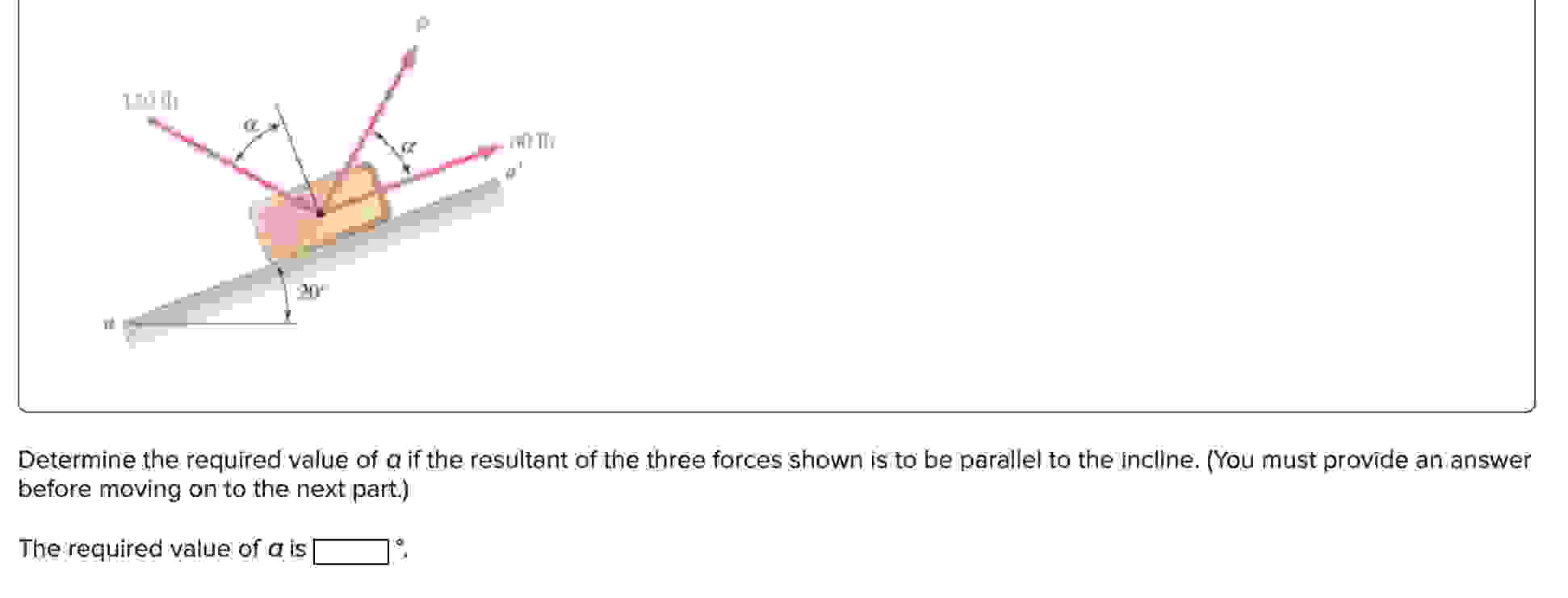

Question: In the given figure, the 6 0 Ib force is aligned with the inclined plane and the Force, P = 7 0 Ib . Determine

In the given figure, the 60 Ib force is aligned with the inclined plane and the Force, P=70 Ib.
Determine the corresponding magnitude of the resultant.
In the given figure, the 6 0 Ib force is aligned

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
