Question: Label the root switch by writing ROOT next to the root switch. Then label each port on each switch with one of the following: RP

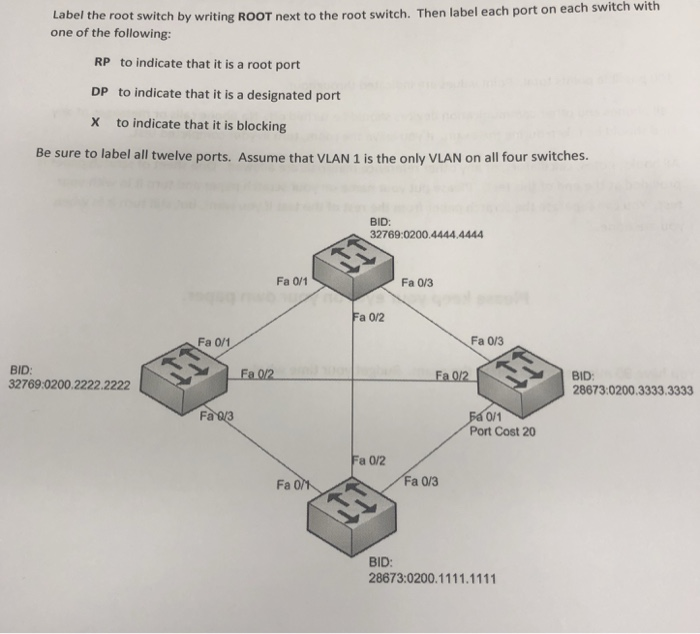

Label the root switch by writing ROOT next to the root switch. Then label each port on each switch with one of the following: RP to indicate that it is a root port DP to indicate that it is a designated port X to indicate that it is blocking Be sure to label all twelve ports. Assume that VLAN 1 is the only VLAN on all four switches. BID: 32769 0200 44444444 Fa 0/1 Fa 0/3 a 0/2 Fa 0/1 Fa 0/3 BID 32769:0200.2222.2222 BID 28673:0200.3333.3333 Faog Port Cost 20 Fa 0/2 Fa 0/3 BID: 28673:0200.1111.1111
