Question: MR Review PartA Consider the frame shown in (Eigure 1). Load F, =680 N is applied to the pin. . . Determine the x and

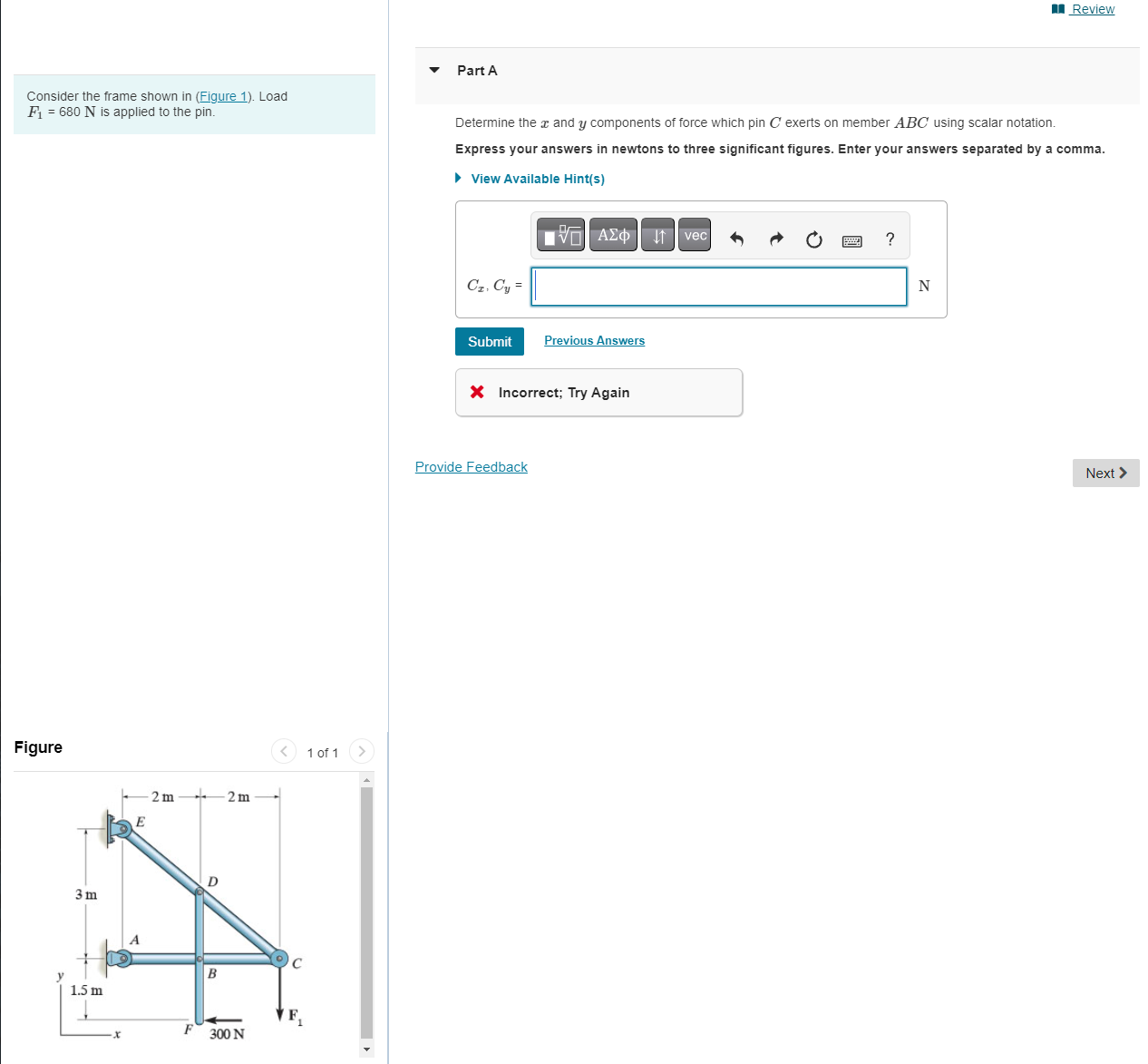

MR Review PartA Consider the frame shown in (Eigure 1). Load F, =680 N is applied to the pin. . . Determine the x and y components of force which pin C' exerts on member ABC' using scalar notation. EXpress your answers in newtons to three significant figures. Enter your answers separated by a comma. View Available Hint(s) \"oom Previous Answers X Incorrect; Try Again Provide Feedback Next Figure 1011 2m 2m
