Multiply these two 5-bit signed binary numbers with 2's complement arithmetic: +3 X +3

Remember for a negative multiplier operand, to convert both the multiplier and multiplicand into their 2's complements. In this case, enter the 2's complements as M and Q below.

Remember to extend the sign bit of the partial products equal to the number of bits in the signed number. For example +14 = 0000001110 and -14 = 1111110010.

Multiplicand (M) = (5-bits)

Multiplier (Q) = (5-bits)

Partial Product 0 = (10-bits)

Partial Product 1 = (10-bits)

Partial Product 2 = (10-bits)

Partial Product 3 = (10-bits)

Product (P) = (10-bits)

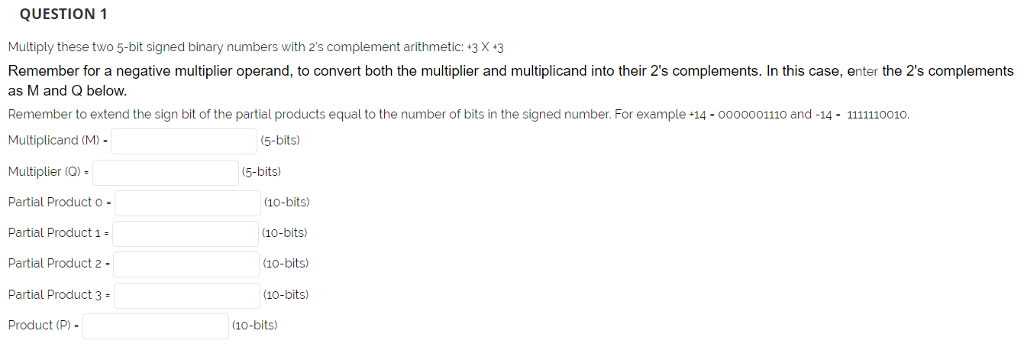

QUESTION 1 Multiply these two 5-bit signed binary numbers with 2's complement arithmetic: 3 x3 Remember for a negative multiplier operand, to convert both the multiplier and multiplicand into their 2's complements. In this case, enter the 2's complements as M and Q below. Remember to extend the sign bit of the partial products equal to the number of bits in the signed number. For example 14- o00000111o and -14 Multiplicand (M) - Multiplier (Q)- Partial Product o - Partial Product 1 Partial Product 2- Partial Product 3- Product (P) 1111110010. (5-bits) 5-bits) 10-bits) (10-bits) (10-bits) (10-bits) 10-bits)
