Network practice excercise

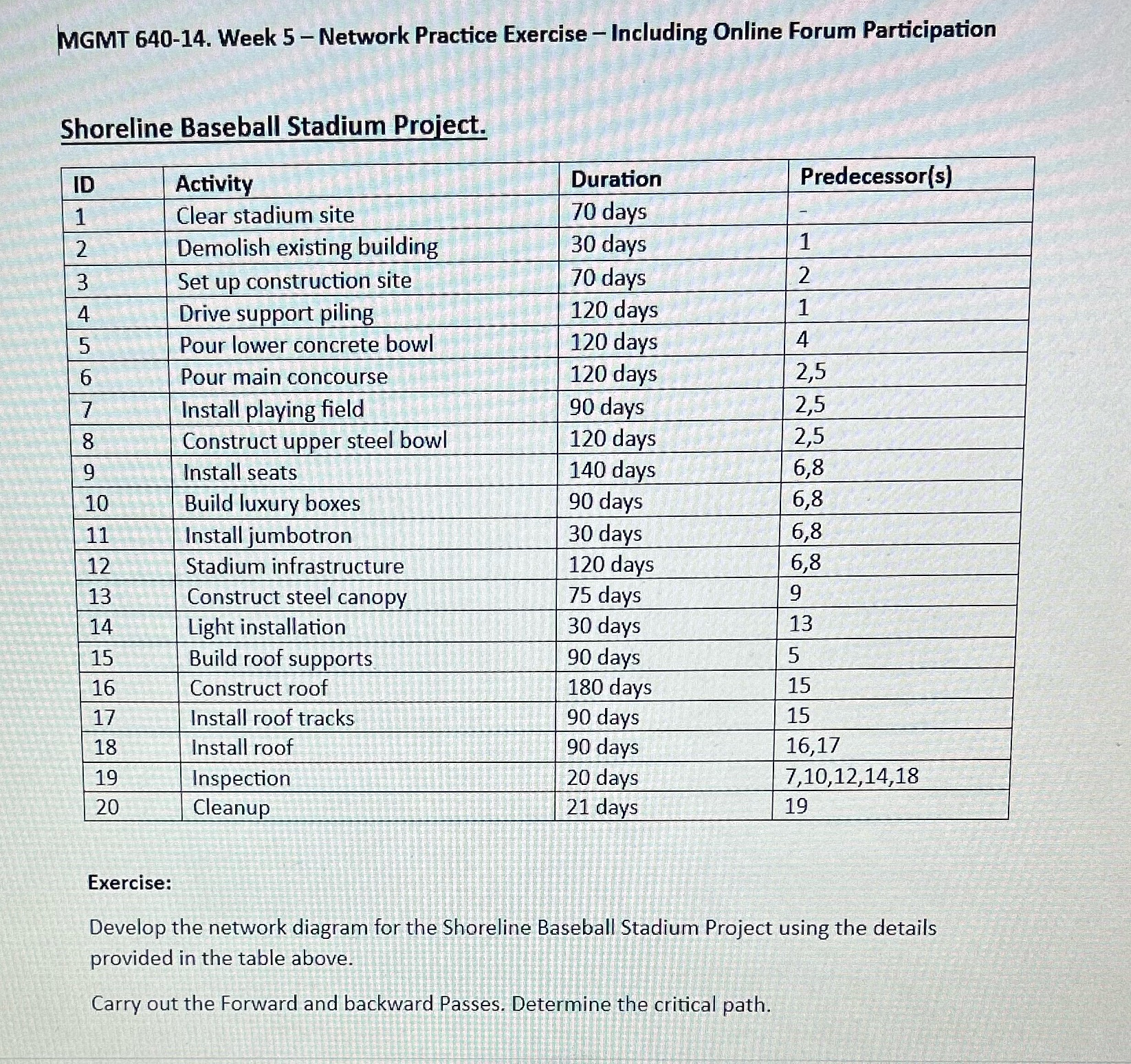

MGMT 640-14. Week 5 - Network Practice Exercise - Including Online Forum Participation Shoreline Baseball Stadium Project. ID Activity Duration Predecessor(s) 1 Clear stadium site 70 days Demolish existing building 30 days 1 3 Set up construction site 70 days 2 4 Drive support piling 120 days 1 5 Pour lower concrete bowl 120 days 4 6 Pour main concourse 120 days 2,5 7 Install playing field 90 days 2,5 8 Construct upper steel bowl 120 days 2,5 9 Install seats 140 days 6,8 10 Build luxury boxes 90 days 6,8 11 Install jumbotron 30 days 6,8 12 Stadium infrastructure 120 days 6,8 13 Construct steel canopy 75 days 9 14 Light installation 30 days 13 15 Build roof supports 90 days 5 16 Construct roof 180 days 15 17 Install roof tracks 90 days 15 18 Install roof 90 days 16,17 19 Inspection 20 days 7,10,12,14,18 20 Cleanup 21 days 19 Exercise: Develop the network diagram for the Shoreline Baseball Stadium Project using the details provided in the table above. Carry out the Forward and backward Passes. Determine the critical path
