Network Security

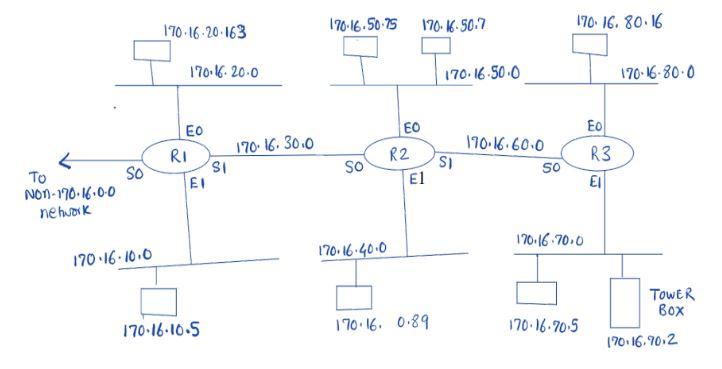

Study the network diagram carefully and write ACLs for each of the given specifications (requirements). You must use extended ACLs only when necessary. The ACL must be complete (that is, indicate the router and the interface that you will put it on) and correct (syntactically and must meet the security requirement)

Using ACLs(Please specify which router the interface is)

f) Prevent traffic from the network 170.16.20.0 from flowing on the network 170.16.70.0 (that is, it must not flow on the network in either direction). All other traffic, including traffic from outside can.

g) Prevent traffic from the tower box 170.16.70.2 from going outside to the non-170.16.0.0 network. All other traffic can go out.
