Question: Part A Replace the force system acting on the post by a resultant force and couple moment at point O . Take F 1 =

Part A
Replace the force system acting on the post by a resultant force and couple

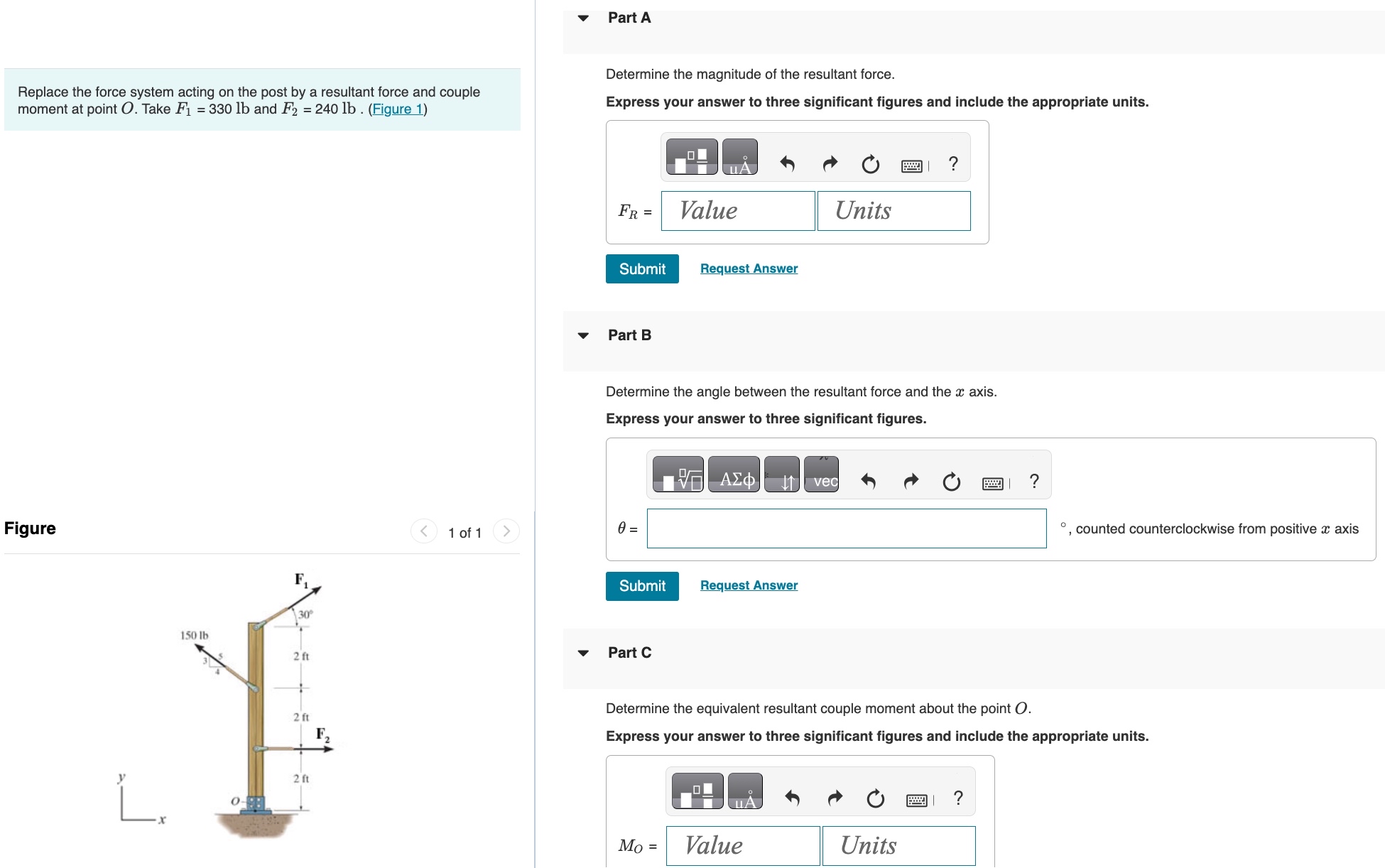

moment at point O. Take F1=330lb and F2=240lb.(Figure 1)
Determine the magnitude of the resultant force.
Express your answer to three significant figures and include the appropriate units.
FR=
Part B
Determine the angle between the resultant force and the x axis.
Express your answer to three significant figures.
Figure
Part C
Determine the equivalent resultant couple moment about the point O.
Express your answer to three significant figures and include the appropriate units.
MO=
