Question: Replace the force system acting on the frame by a resultant force and couple moment at point AA . Take F 1 = 6 kN

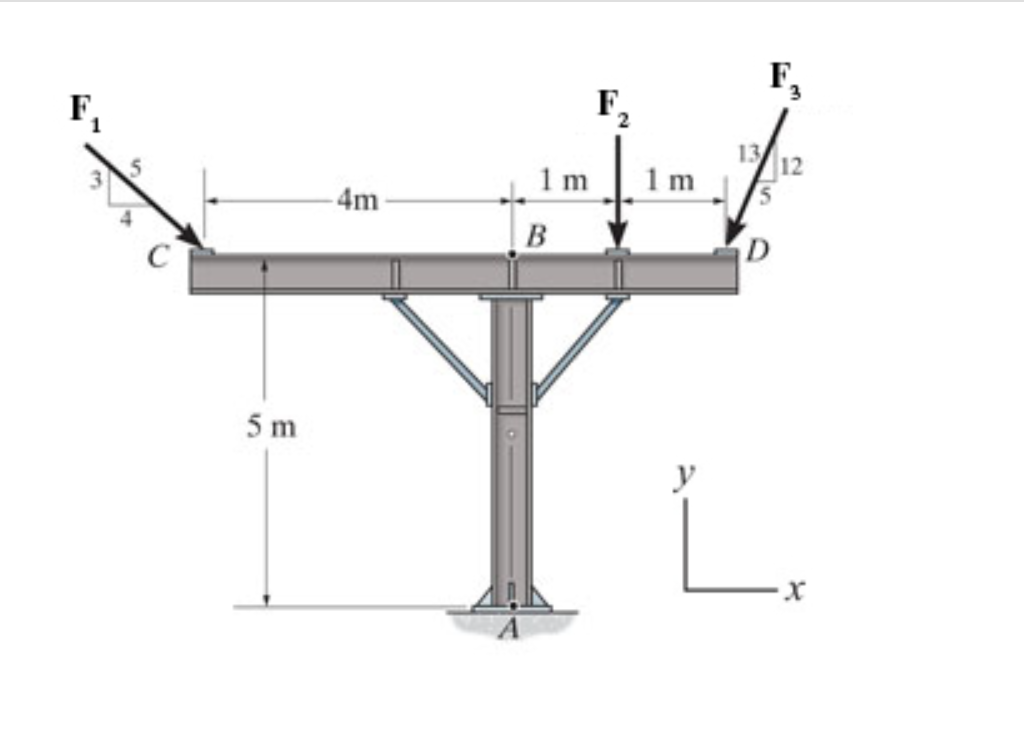

Replace the force system acting on the frame by a resultant force and couple moment at point AA. Take F1=6 kN, F2=4 kN, F3=4 kN .
- Determine the magnitude of the resultant force.
- Determine the angle between the resultant force and the x axis.
- Determine the moment of the resultant force about the point A.
Replace the force system acting on the frame by a

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Replace the force system acting on the frame by a resultant force and couple moment at point A . Take F 1 = 6 kN , F 2 = 4 kN , F 3 = 4 kN .

Q:

Part A Replace the force system acting on the post by a resultant force and couple moment at point O . Take F 1 = 3 3 0 l b and F 2 = 2 4 0 l b . ( Figure 1 ) Determine the magnitude of the resultant...

Q:

Replace the force system acting on the post by a resultant force and couple moment at point O . Take F 1 = 4 0 0 l b and F 2 = 2 0 5 l b . ( Figure 1 ) = igure Part A Determine the magnitude of the...

Q:

Replace the force system acting on the post by a resultant force and couple moment at point O . Take F 1 = 3 3 0 l b and F 2 = 2 4 0 l b * ( Figure 1 ) Part A Determine the magnitude of the resultant...

Q:

Replace the force system acting on the post by a resultant force and couple moment at point O . Take F 1 = 3 4 0 lb and F 2 = 2 1 0 lb . Determine the magnitude of the resultant force. Determine the...

Q:

Replace the force system acting on the post by a resultant force and couple moment at point O . Take F 1 = 3 7 5 l b and F 2 = 2 4 0 lb . ( Figure 1 ) Figure 1 of 1 . Part A Determine the magnitude...

Q:

Replace the force system acting on the post by a resultant force and couple moment at point O . Take F 1 = 3 2 0 lb and F 2 = 2 0 0 lb . - Determine the magnitude of the resultant force. - Determine...

Q:

Replace the force system acting on the beam by an equivalent force and couple moment at pointA. 3 kN 2.5 kN 1.5 kN 3ur IB Fiat 4 m

Q:

Replace the force system acting on the beam by an equivalent force and couple moment at pointB. 3 kN 2.5 kN 1.5 kN 20e - 4 m- -2 m- 2 m-

Q:

Replace the force system acting on the post by a resultant force and couple moment at point O. 300 lb 30 150 lb 2 ft 2 ft 200 lb 2 ft in
