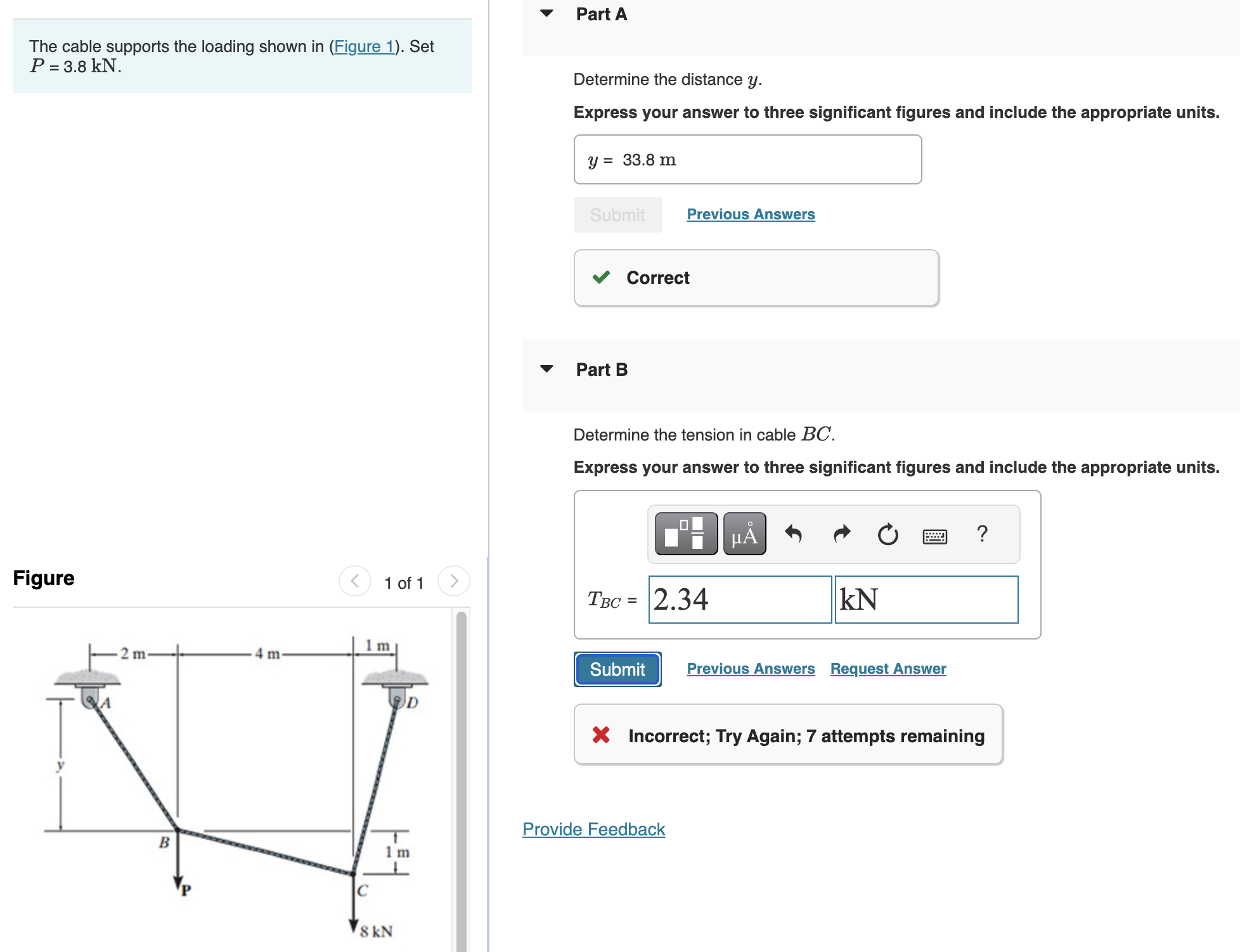

Question: Part A The cable supports the loading shown in ( Figure 1 ) . Set P = 3 . 8 k N . Determine the

Part A
The cable supports the loading shown in (Figure 1). Set
P=3.8kN.
Determine the distance y.
Express your answer to three significant figures and include the appropriate units.
Part B
Determine the tension in cable BC.
Express your answer to three significant figures and include the appropriate units.
Part A The cable supports the loading shown in (

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
