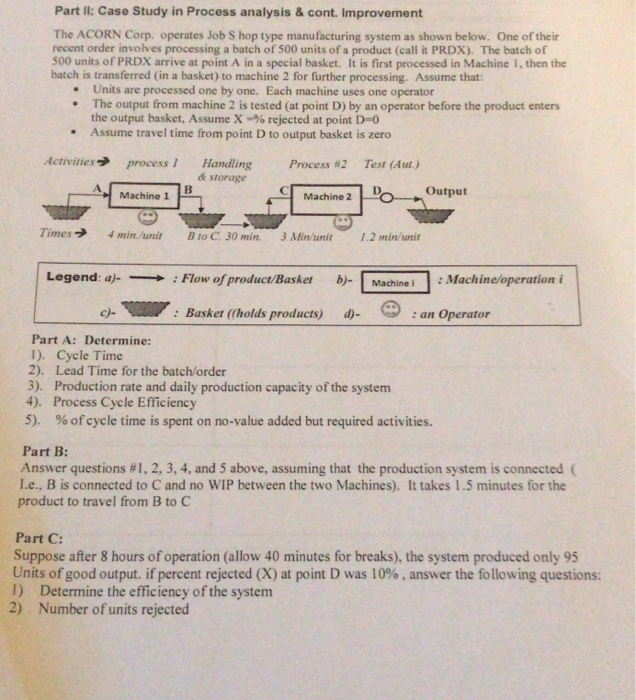

Part II: Case Study in Process analysis & cont. Improvement The ACORN Corp. operates Job S hop type manufacturing system as shown below. One of their recent order involves processing a batch of 500 units of a product (call it PRDX). The batch of s00 units of PRDX arrive at point A in a special basket. It is first processed in Machine 1, then the batch is transferred (in a basket) to machine 2 for further processing. Assume that: Units are processed one by one. Each machine uses one operator The output from machine 2 is tested (at point D) by an operator before the product enters the output basket, Assume X -% rejected at point D-0 Assume travel time from point D to output basket is zero Activities process 1 Handling & storage B Test (Aut.) Process #2 Output Machine 1 Machine 2 Times > 4 min./unit B to C. 30 min. 1.2 min/unit 3 Min/unit Legend: a)- : Flow of product/Basket : Machine/operation i b)- Machine i Basket ((holds products) : an Operator c)- d)- Part A: Determine: 1). Cycle Time 2). Lead Time for the batch/order 3). Production rate and daily production capacity of the system 4). Process Cycle Efficiency 5). % of cycle time is spent on no-value added but required activities. Part B: Answer questions # 1, 2, 3, 4, and 5 above, assuming that the production system is connected ( .e., B is connected to C and no WIP between the two Machines). It takes 1.5 minutes for the product to travel from B to C Part C: Suppose after 8 hours of operation (allow 40 minutes for breaks), the system produced only 95 Units of good output. if percent rejected (X) at point D was 10%, answer the following questions: 1) Determine the efficiency of the system 2) Number of units rejected 3) Ifefficiency of the system was less than 100%, assuming you are the Continuous Improvement engineer, list possible causes of inefficiency (or low productivity and higher cost) in each of the following categories and suggest a solution (or solutions) for improving the situation Sources of inefficiency List the problems and suggested solutions Labor Machines Methods Material System Others Note: Do not limit your answer to this page. Use additional pages in the above format
