do part A

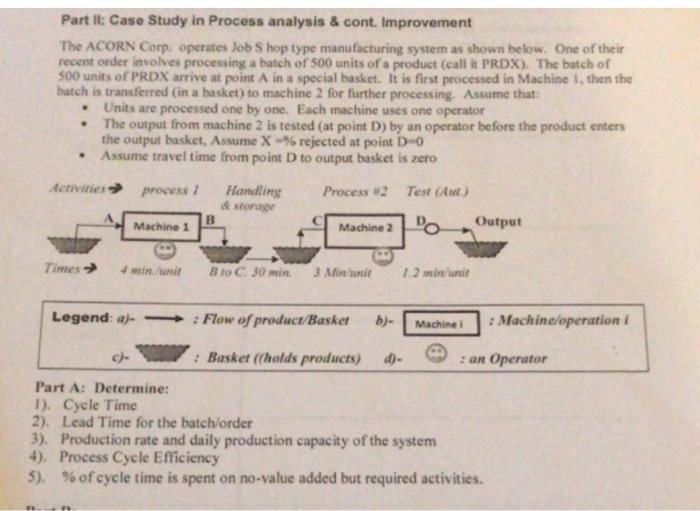

Partit: Case Study in Process analysis & cont. Improvement The ACORN Corp. operates Job Shop type manufacturing system as shown below. One of their recent order involves processing a batch of 500 units of a product (call it PRDX). The batch of 500 units of PRDX arrive at point A in a special basket. It is first processed in Machine 1, then the batch is transferred (in a basket) to machine 2 for further processing. Assume that: Units are processed one by one. Each machine uses one operator The output from machine 2 is tested (at point D) by an operator before the product enters the output basket, Assume X rejected at point D-O Assume travel time from point D to output basket is zero . . derivities process / Handling & storage Process Test (Aut) B Machine 1 Machine 2 DO Output Times B to 30 min 3 Minatit 1.2 minit Legend: a) : Flow of product/Basket b)- Machine i : Machine/operation c)- Basket ((holds products) : an Operator Part A: Determine: 1). Cycle Time 2). Lead Time for the batch/order 3). Production rate and daily production capacity of the system 4). Process Cycle Efficiency 5). % of cycle time is spent on no-value added but required activities
