Question: PERT chart a) Draw the Network or PERT Chart include task id, duration, ES, EF, LS, LF, slack b) What is the critical path? What

PERT chart

PERT chart a) Draw the Network or PERT Chart

a) Draw the Network or PERT Chart include task id, duration, ES, EF, LS, LF, slack

b) What is the critical path? What is slack time for tasks F and G?

c) Would the management of the project change if there was determined to be a new task H1 predecessor H successor I with duration 2? Why or Why not?

d) Would the management of the project change if there was determined to be a new task H1 predecessor H successor I with duration 5? Why or why not?

e) What is slack time and lag time?

f) Can the critical path of a project change? Why or why not?

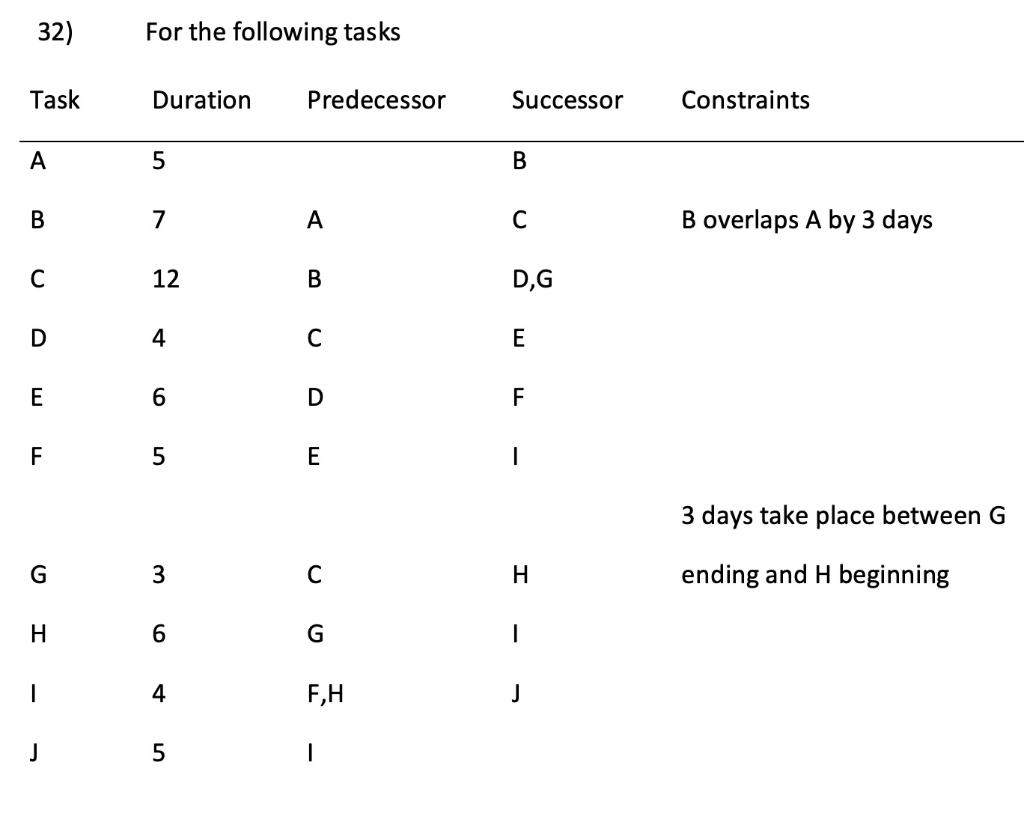

32) For the following tasks Task Duration Predecessor Successor Constraints A 5 B B 7 A C B overlaps A by 3 days C 12 B D,G D 4 C E E 6 D F F 5 E 1 3 days take place between G G 3 C H ending and H beginning H 6 G I I I 4 F,H J J 5
