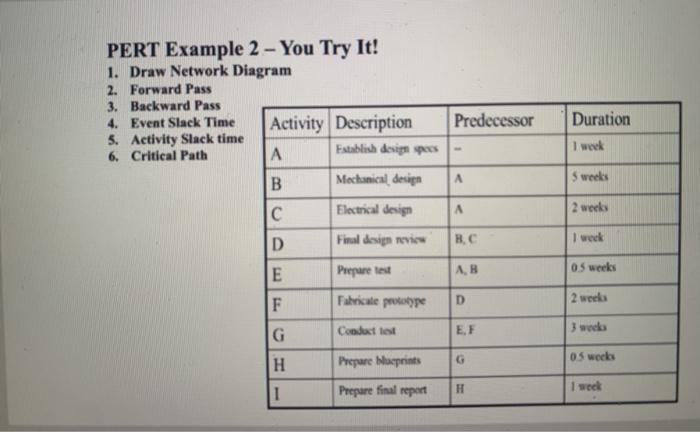

Question: PERT Example 2 - You Try It! 1. Draw Network Diagram 2. Forward Pass 3. Backward Pass 4. Event Slack Time Activity Description Predecessor 5.

PERT Example 2 - You Try It! 1. Draw Network Diagram 2. Forward Pass 3. Backward Pass 4. Event Slack Time Activity Description Predecessor 5. Activity Slack time 6. Critical Path Establish designers B Mechanical design Duration 1 week A $ weeks Electrical design A 2 weeks D Final design review BC I week E Prepare test AB 05 weeks F Fabricate prototype D 2 weeks G Conduct test EF 3 weeks H 05 weeks Prepare blueprints H Prepare final report 1 weck
