Question: 1. Draw Network Diagram 2. Forward Pass 3. Backward Pass 4. Event Slack Time Activity Description 5. Activity Slack time 6. Critical Path A Establish

1. Draw Network Diagram 2. Forward Pass 3.

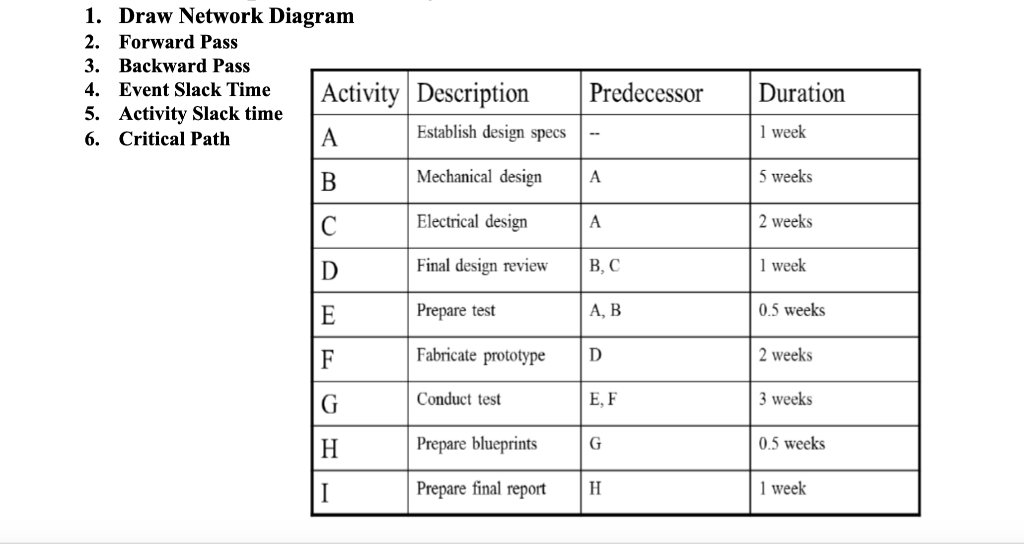

1. Draw Network Diagram 2. Forward Pass 3. Backward Pass 4. Event Slack Time Activity Description 5. Activity Slack time 6. Critical Path A Establish design specs Predecessor Duration 1 week B Mechanical design A 5 weeks C Electrical design A 2 weeks D Final design review B, C 1 week E Prepare test AB 0.5 weeks F Fabricate prototype D 2 weeks G Conduct test EF 3 weeks H Prepare blueprints G 0.5 weeks I Prepare final report H 1 week

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
