Question: please answer in VHDL 4) Using the given labels, list the order in which the following signal assignments are evaluated if in2 changes from a

please answer in VHDL

please answer in VHDL 4) Using the given labels, list the order

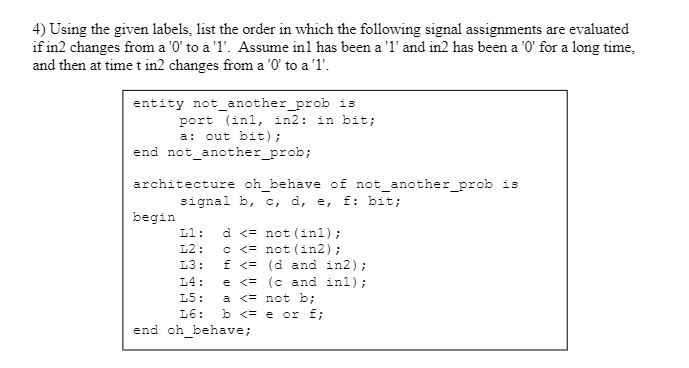

4) Using the given labels, list the order in which the following signal assignments are evaluated if in2 changes from a 'O' to a 'l'. Assume inl has been a 'l' and in2 has been a 'O' for a long time, and then at time t in2 changes from a 'O' to a'l'. entity not_another_prob is port (ini, in2: in bit; a: out bit); end not_another_prob; architecture oh_behave of not_another_prob is signal b, c, d, e, f: bit; begin Ll: d
