Question: Please compute using Matlab - please show the script and solution. 8.* Engineers must be able to predict the rate of heat loss through a

Please compute using Matlab - please show the script and solution. 8.*Engineers must be able to predict the rate of heat loss throughPlease compute using Matlab - please show the script and solution.

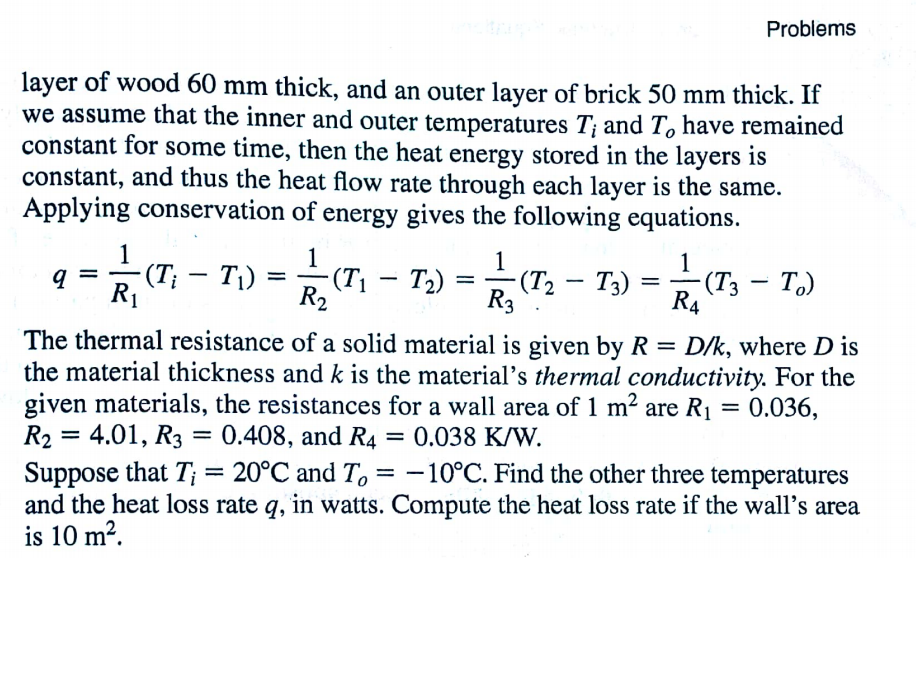

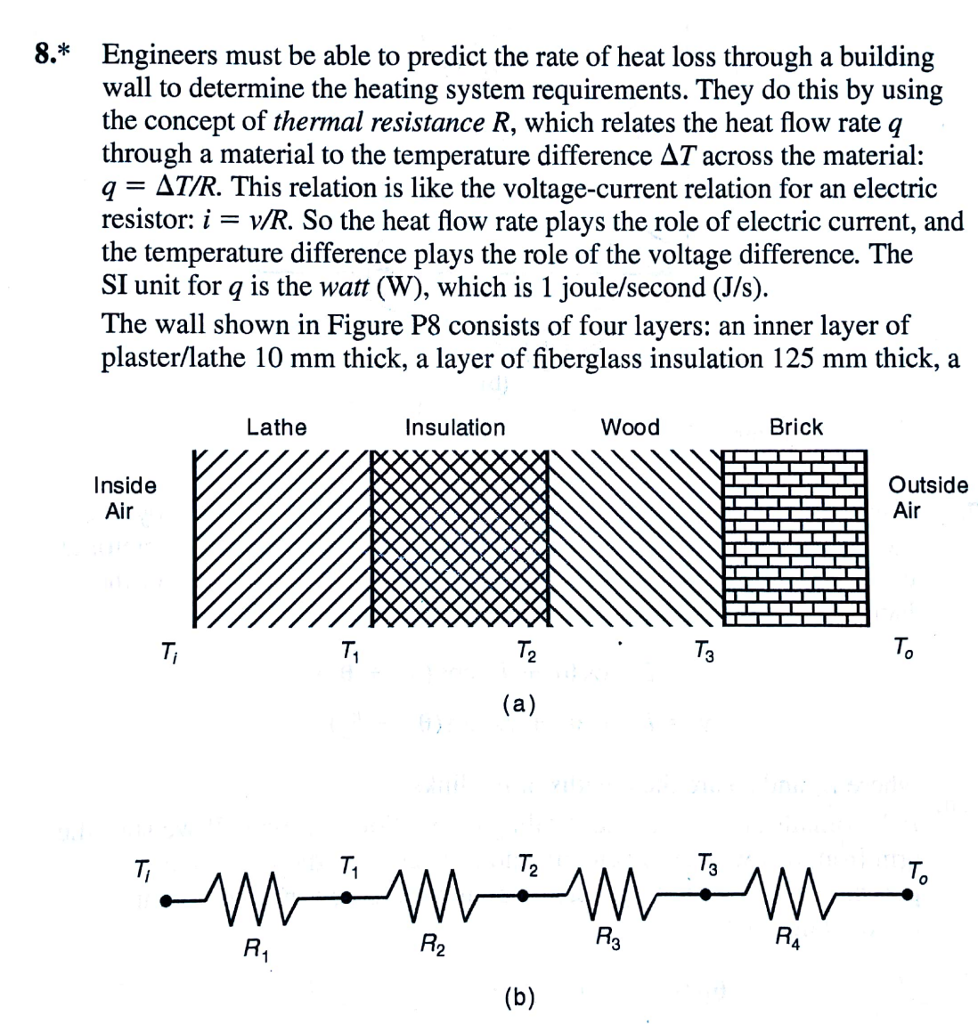

8.* Engineers must be able to predict the rate of heat loss through a building wall to determine the heating system requirements. They do this by using the concept of thermal resistance R, which relates the heat flow rate q through a material to the temperature difference AT across the material: q TR. This relation is like the voltage-current relation for an electric resistor: i = WR. So the heat flow rate plays the role of electric current, and the temperature difference plays the role of the voltage difference. The SI unit for q is the watt (W), which is 1 joule/second (J/s). The wall shown in Figure P8 consists of four layers: an inner layer of plaster/lathe 10 mm thick, a layer of fiberglass insulation 125 mm thick, a Lathe Insulation Wood Brick Inside Air Outside Air T. 2
