Question: Please create a state table and diagram to help show the steps as well as the circuit Design a system that has a single input,

Please create a state table and diagram to help show the steps as well as the circuit
Please create a state table and diagram to help show the steps

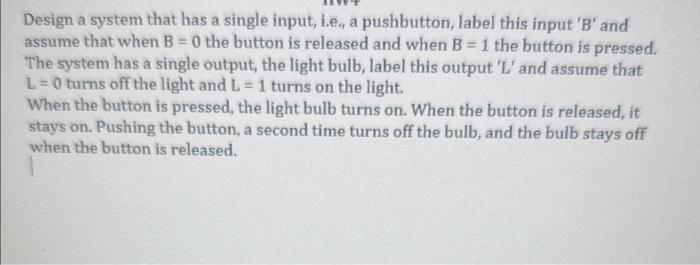

Design a system that has a single input, i.e., a pushbutton, label this input ' B and assume that when B=0 the button is released and when B=1 the button is pressed. The system has a single output, the light bulb, label this output ' L ' and assume that L=0 turns off the light and L=1 turns on the light. When the button is pressed, the light bulb turns on. When the button is released, it stays on. Pushing the button, a second time turns off the bulb, and the bulb stays off when the button is released
