Please draw the complete circuit on paper.

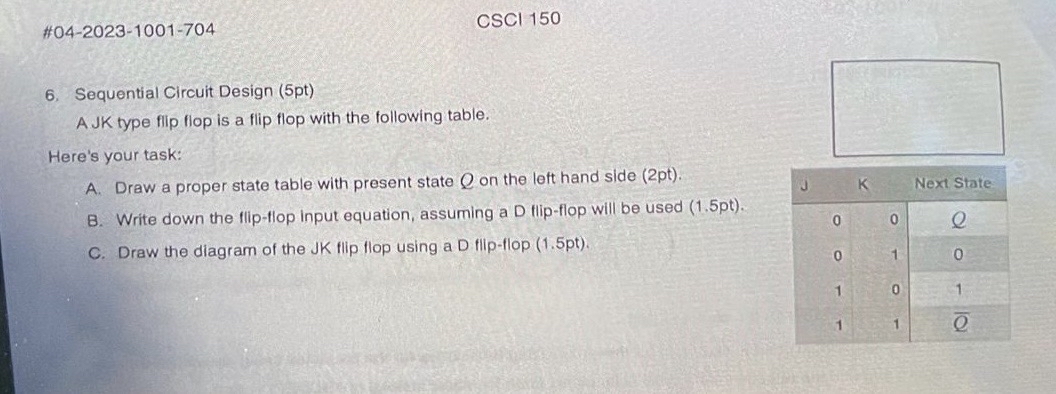

$6.$ Sequential Circuit Design $(5$pt$)$

A JK type flip flop is a flip flop with the following table.

Here's your task:

A$.$ Draw a proper state table with present state $Q$ on the left hand side $(2$pt$).$

B$.$ Write down the flip$-$flop input equation, assuming a D flip$-$flop will be used $(1\mathrm{.}5$pt$),$

C$.$ Draw the diagram of the JK flip flop using a D fllip$-$flop $(1\mathrm{.}5$pt$).$
